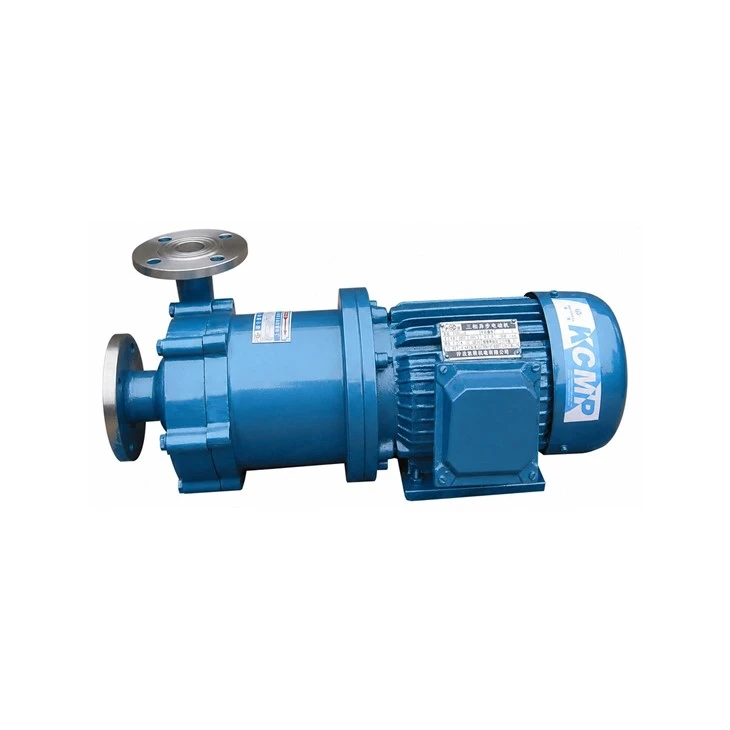

CQ Magnetic Pump

CQ series magnetic drive centrifugal pump is a sealless & zero-leakage horizontal centrifugal pump developed based on permanent magnetic coupling principle. It cancels traditional mechanical shaft seal and adopts static seal instead of dynamic seal, fundamentally eliminating leakage risk.
The pump consists of motor, magnetic coupling assembly and pump head. The magnetic drive assembly includes outer magnet rotor, isolation shell and inner magnet rotor. Magnetic force penetrates the isolation sleeve to transmit torque without mechanical contact.
Standard wetted parts adopt 304 / 316L stainless steel. Bearings are optional graphite or silicon carbide. Explosion-proof motor is available for flammable & explosive working conditions.

Send Inquiry

Product Introduction

Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of cq magnetic pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized cq magnetic pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

Technical Parameters

Flow	1.2~60m³/h
Head	5~50m
Speed	1450rpm and 2900rpm (50HZ),
1750rpm and 3500rpm (60HZ)
Inlet/Outlet Diameter	DN50mm~DN100mm
Medium Density	1.0~1.84 g/cm³
Medium Temperature	-20℃~90℃
Working Pressure	≤1.6MPa

Applications

This pump is widely applied across various demanding industries, including fine chemicals, pharmaceuticals, electroplating, petrochemicals, dyestuff & coatings, laboratory equipment, environmental water treatment, food processing, as well as flavor & solvent transfer and hazardous chemical circulation.
