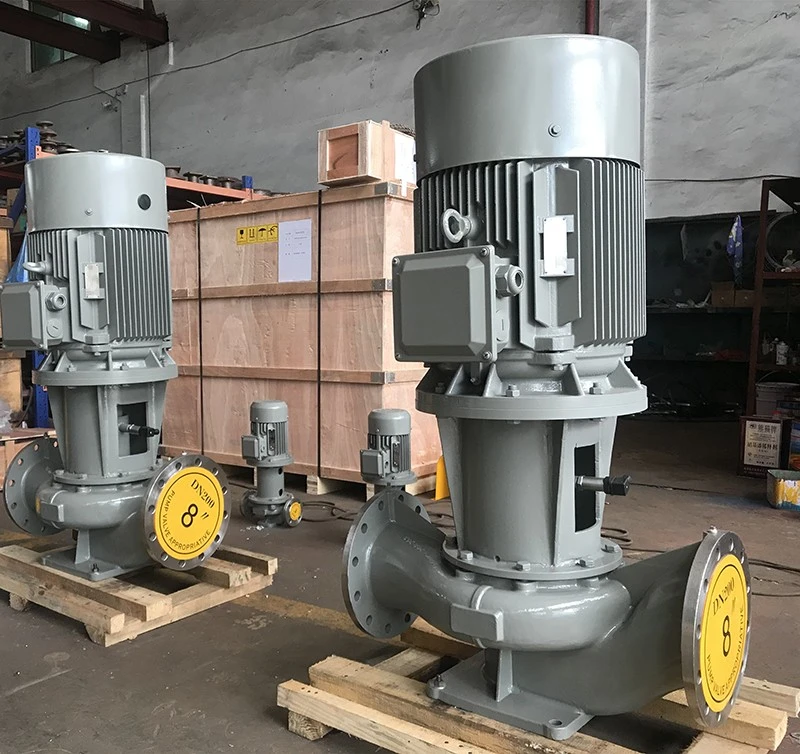

Vertical New Type Inline Pump

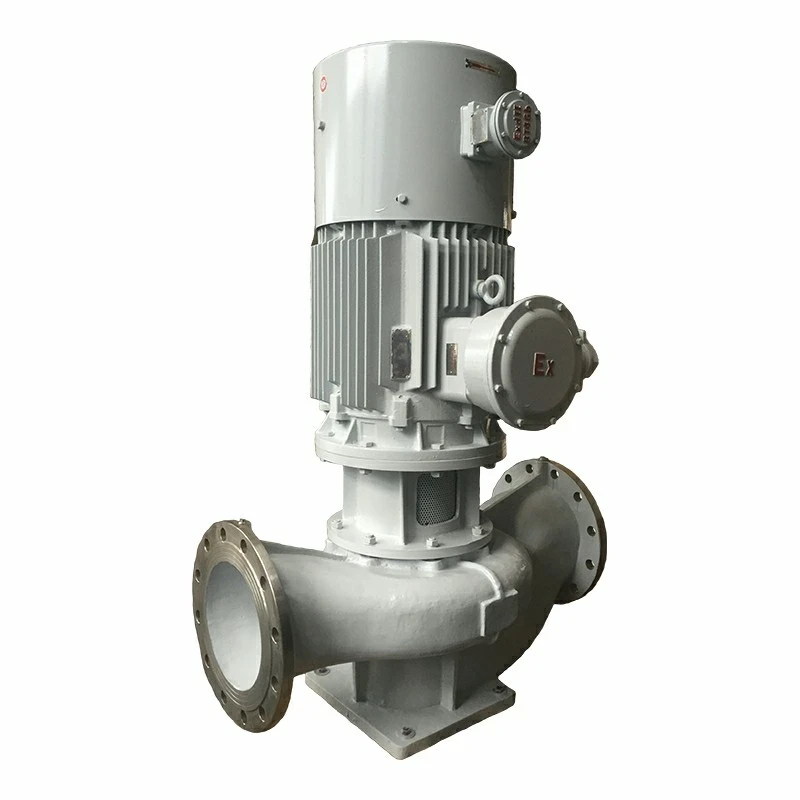

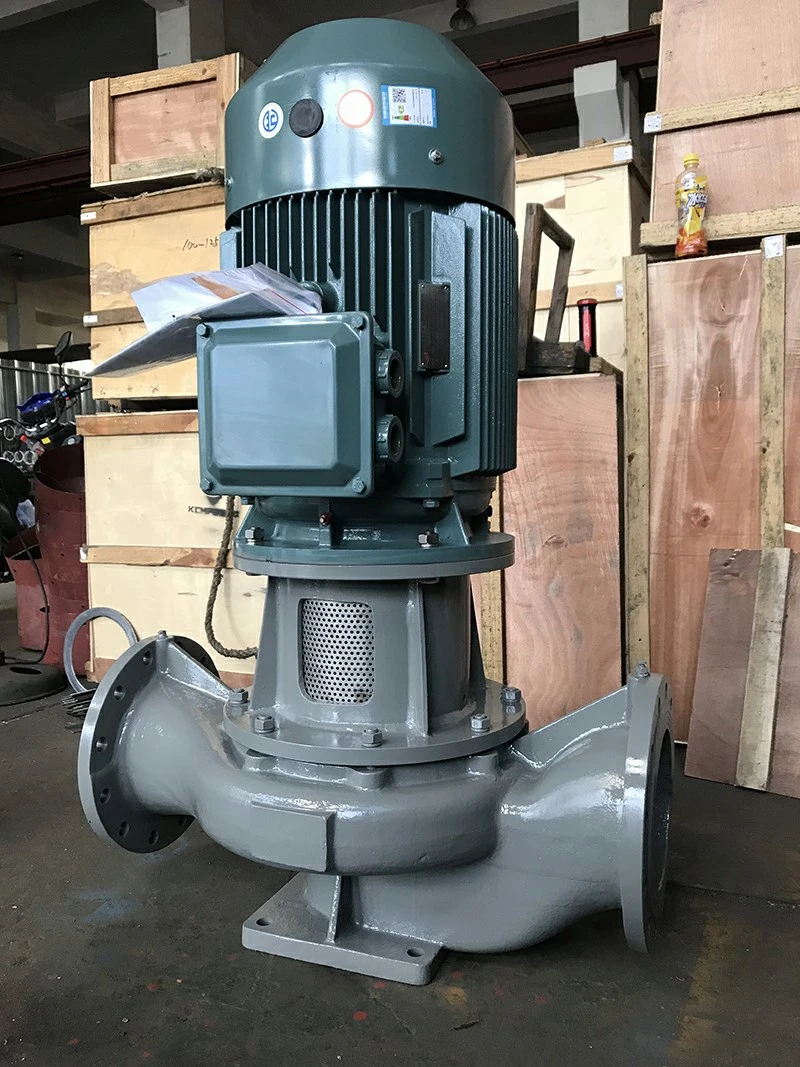

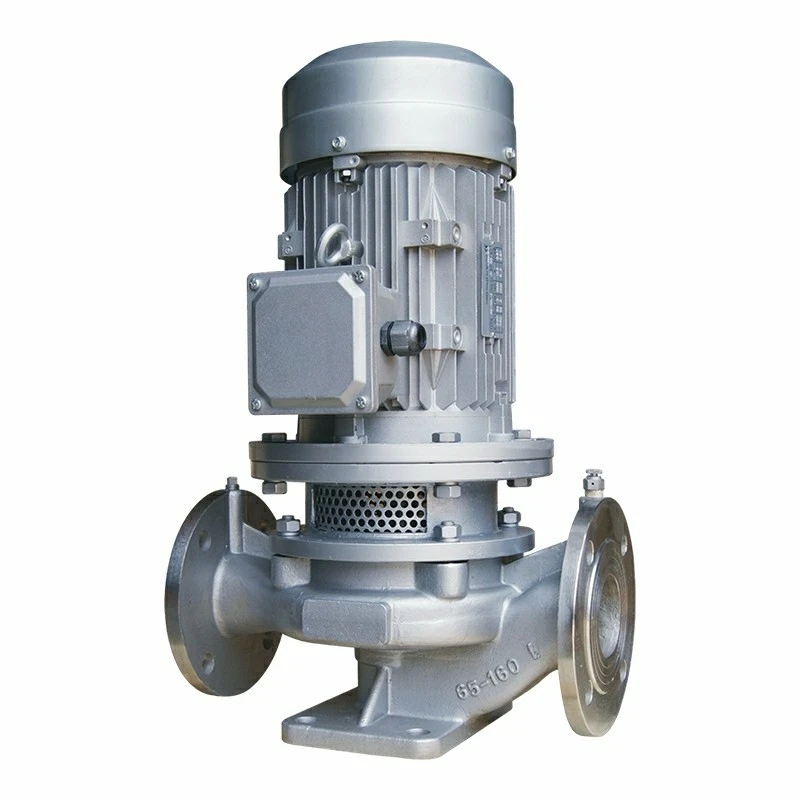

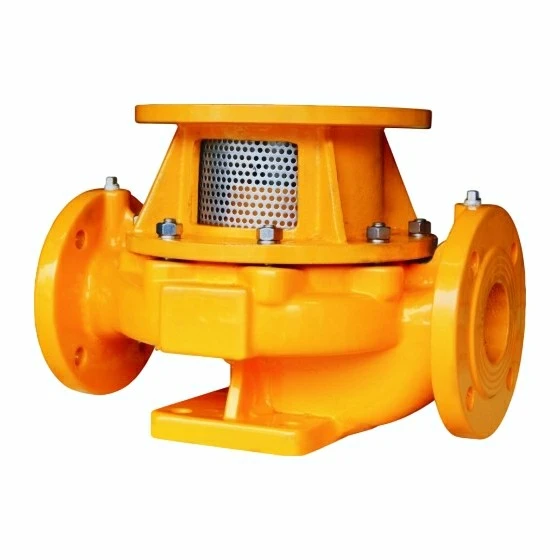

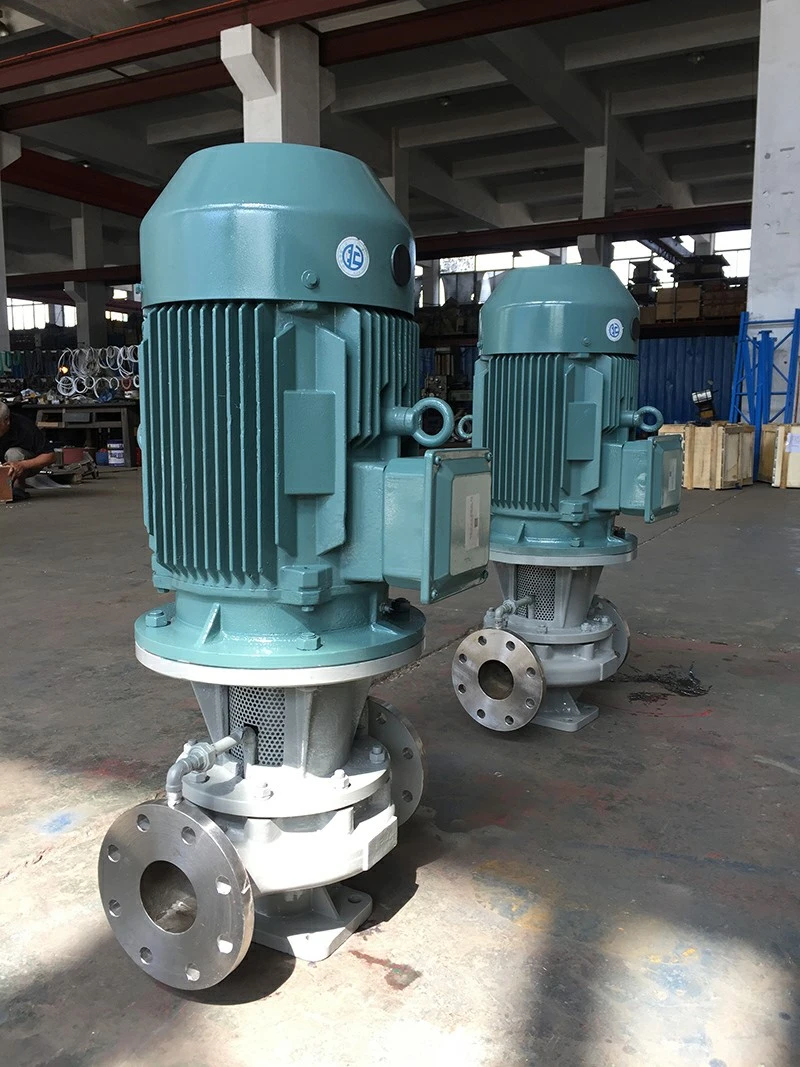

New Type Vertical inline centrifugal pump adopts vertical base mounting configuration. Different from direct-coupled pipeline pumps, this model is equipped with a middle coupling and safety guard between pump casing and vertical motor.
Its suction and discharge flanges are centered on the same horizontal axis, enabling direct inline installation into existing pipelines. The coupling structure effectively absorbs vibration during heavy-load operation, preventing shaft deflection and abnormal vibration issues commonly found on high-power direct-connected pumps.

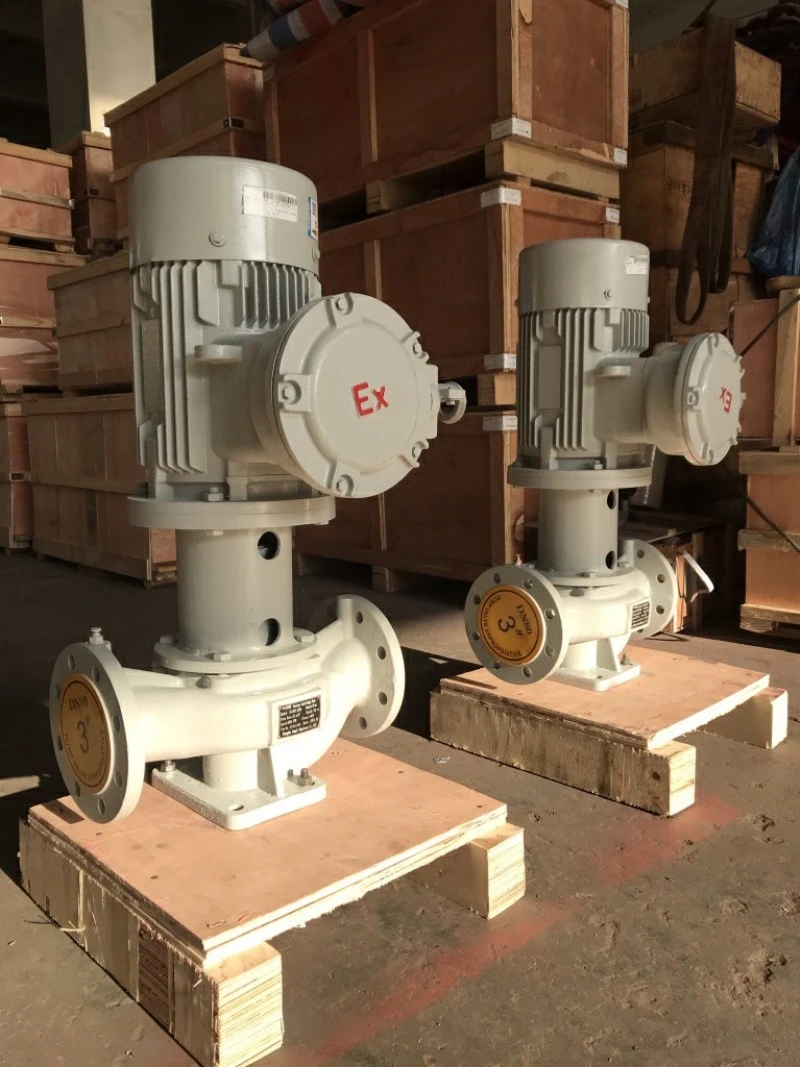

Manufactured in compliance with GB/T 5656 standard, this pump delivers high hydraulic efficiency and stable continuous-duty performance. Multiple customizable options are available: cast iron / SS304 / SS316 pump casing, explosion-proof motor, VFD drive assembly and high-temperature mechanical seals. It is widely deployed for large-scale HVAC units, factory circulating water, high-rise water pressurization and heat exchanger supporting systems.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of vertical new type inline pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized vertical new type inline pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
2~1200m3/h |
|
Head |
5~150m |
|
Speed |
1450rpm and 2900rpm (50HZ) 1750rpm and 3500rpm (60HZ) |
|
Inlet/Outlet Diameter |
DN25mm~DN300mm |
|
Medium Temperature |
-15℃~120℃ |
|
Working Pressure |
≤1.6MPa |
Main Application Industries
KLS vertical inline centrifugal pump covers extensive application scenarios: hot & cold water circulation, high-rise domestic water supply, fire system pressurization, long-distance water transport, industrial process circulating boosting, landscape sprinkler and farmland irrigation.
It is suitable for conveying clear water and mediums with physical & chemical characteristics equivalent to clean water.
KLH vertical chemical centrifugal pump is engineered to convey low-viscosity corrosive media analogous to water in viscosity. It accommodates particle-free corrosive liquids or fluids with minimal fine solid impurities.
Widely applicable for mainstream industrial fields: chemical processing, food production, brewery, petroleum refining, pharmaceutical manufacturing, paper & pulp, metallurgy, power plants, water treatment, environmental protection and light textile industries.
KLY vertical oil transfer pump is engineered to handle low-viscosity lubricating oils, fuel oils, and various clear oily media.
