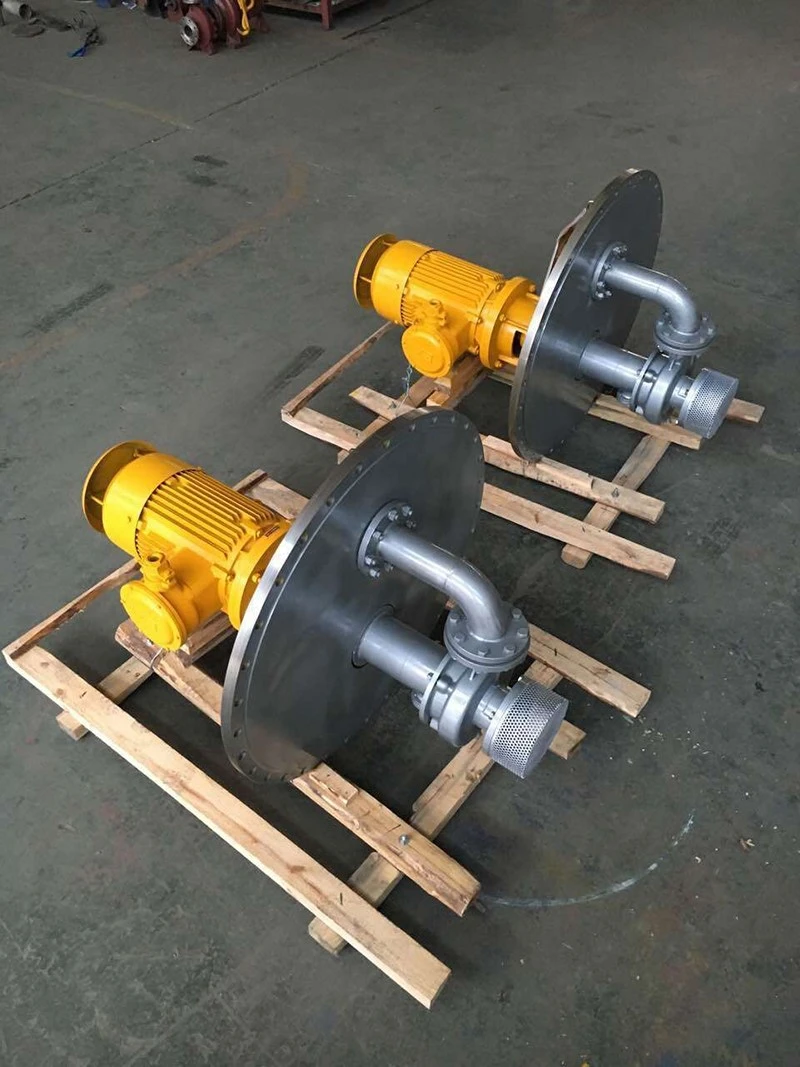

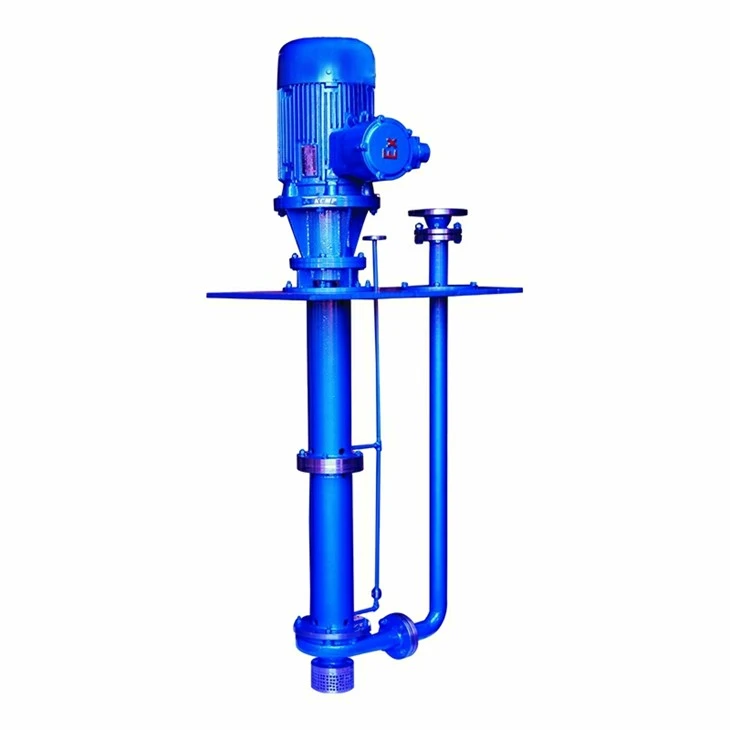

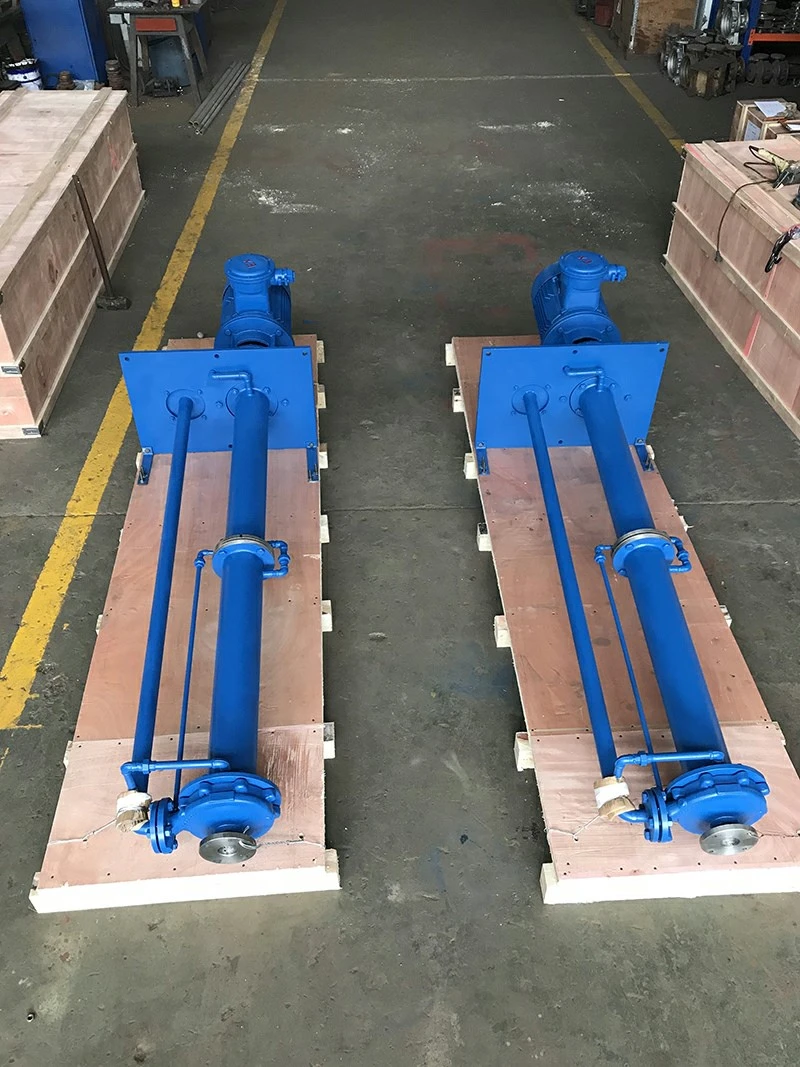

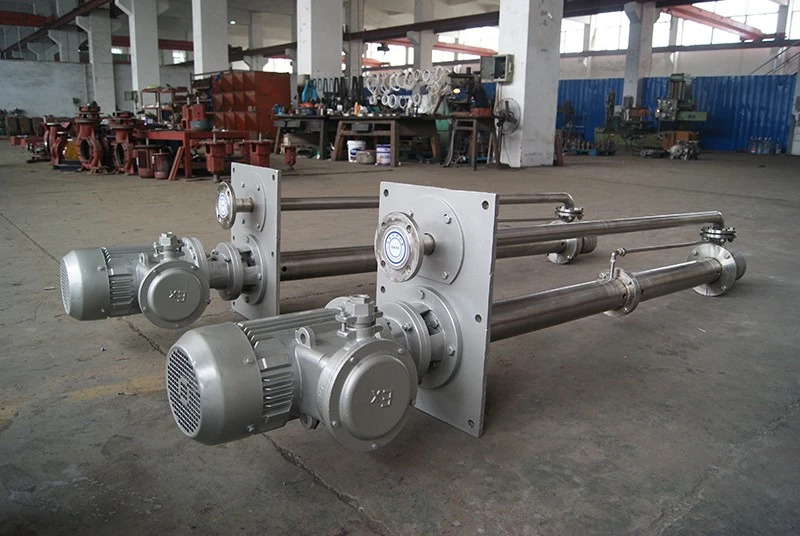

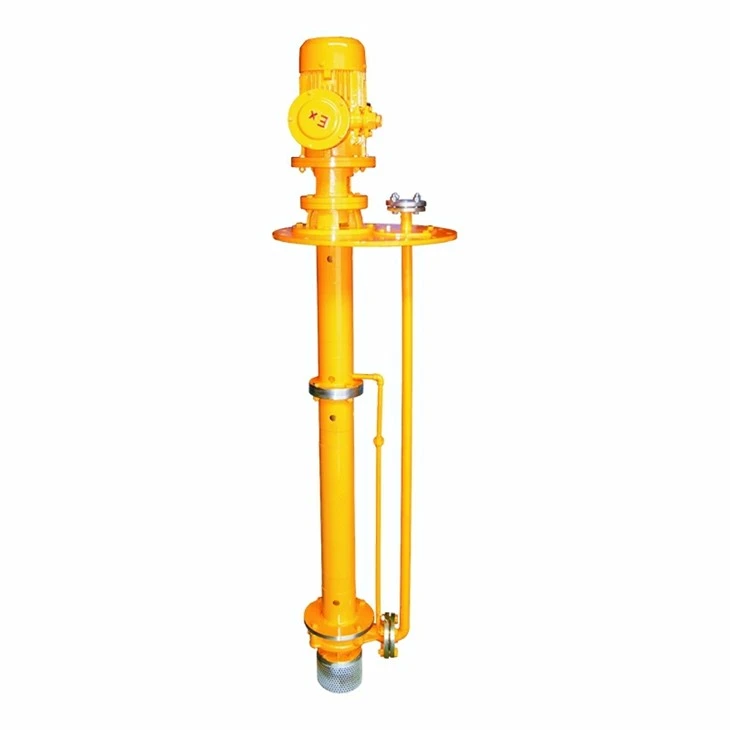

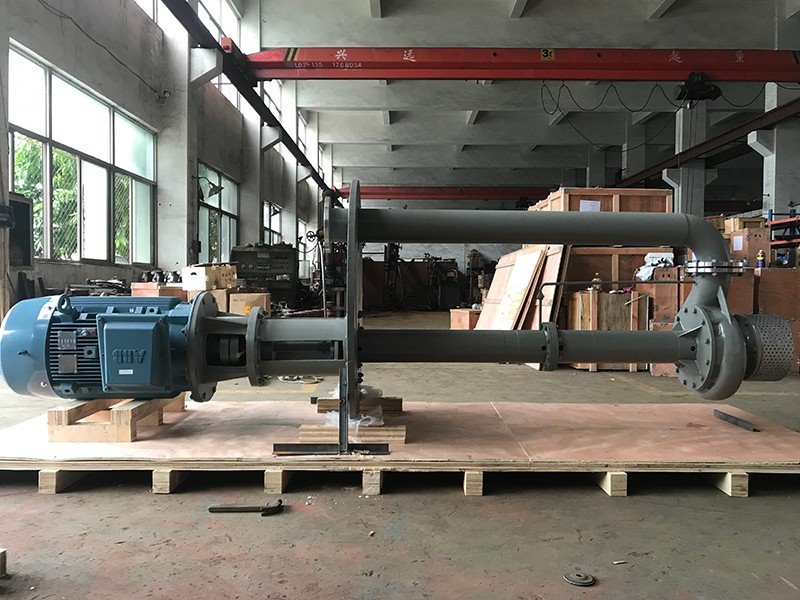

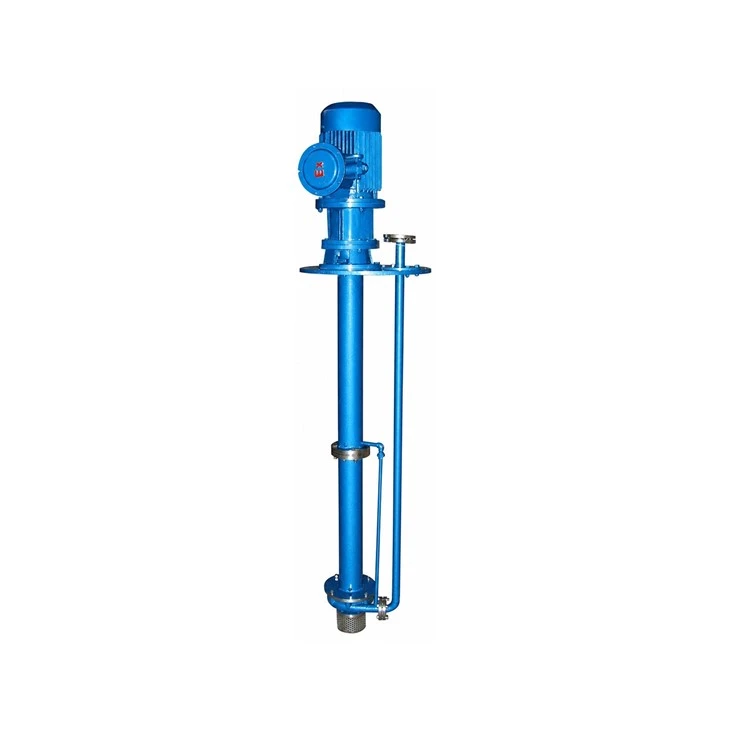

FYH Submerged Chemical Pump
The FYH series vertical long-shaft submerged pumps are newly developed, energy-saving, and eco-friendly products independently designed in response to market demands. They are engineered to convey clean media with neutral or corrosive characteristics, and are widely deployed in industries such as wastewater treatment, cement plants, thermal power stations, and petrochemical sectors.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of fyh submerged chemical pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized fyh submerged chemical pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
3~400m3/h |
|
Head |
3~80m |
|
Speed |
1450rpm and 2900rpm (50HZ), 1750rpm and 3500rpm (60HZ) |
|
Medium Temperature |
-20℃~100℃, special structural design allows for a max temperature 200℃ |
|
Working Pressure |
≤1.6MPa Customized submerged depth up to a max of 6m. |
Flushing Methods
Clean fluid is introduced to flush the sliding bearings and guarantee reliable pump operation. Two alternative flushing configurations are available to accommodate different process media conditions.
Self-Flushing
This scheme applies when the pumped medium is clean and free of impurities. A branch pipeline is diverted from the pump discharge flange, directing a portion of the process fluid to each sliding bearing assembly. The circulating fluid lubricates the sliding bearings and dissipates frictional heat, providing continuous cooling during operation.
External Flushing
External flushing is adopted for media carrying fine solid particles. An external pipeline connection supplies independent clean flushing fluid to all sliding bearings. The externally sourced clean liquid fulfills bearing lubrication and heat dissipation functions. Additionally, it blocks solid particulates from penetrating the friction pairs, effectively preventing abrasive wear of the bearing components.
