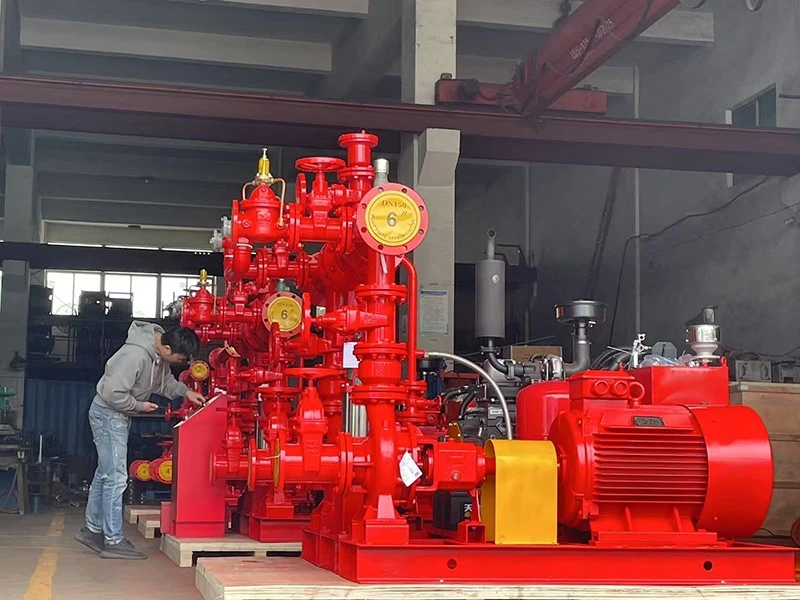

EDJ Three-in-One Dual Power Fire Pump Set
The EDJ Dual-Power Fire Pump Unit is core emergency fire protection equipment designed and manufactured in strict compliance with the mandatory national standard and NFPA 20 codes. This unit innovatively integrates an electric fire pump, diesel fire pump, jockey pump and intelligent control cabinet onto one shared skid-mounted base.
Its core merit is dual power safety guarantee: the electric pump acts as the primary water supply unit under normal mains power. When mains power fails due to fire incidents or the electric pump breaks down, the system will seamlessly switch to the diesel fire pump automatically, delivering continuous fire water supply even under extreme working conditions.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of edj three-in-one dual power fire pump set in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized edj three-in-one dual power fire pump set at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Product Introduction and Features
We customize the design and assembly of skid-mounted fire pump units according to customers' site conditions and applicable fire protection standards.

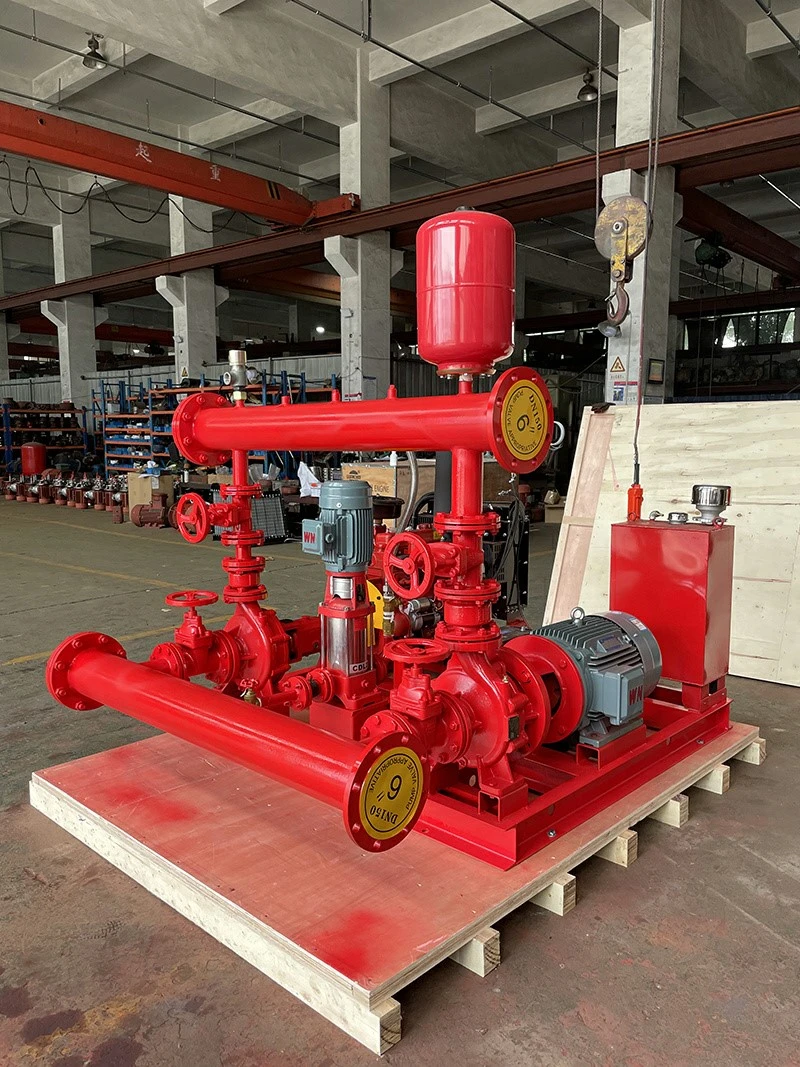

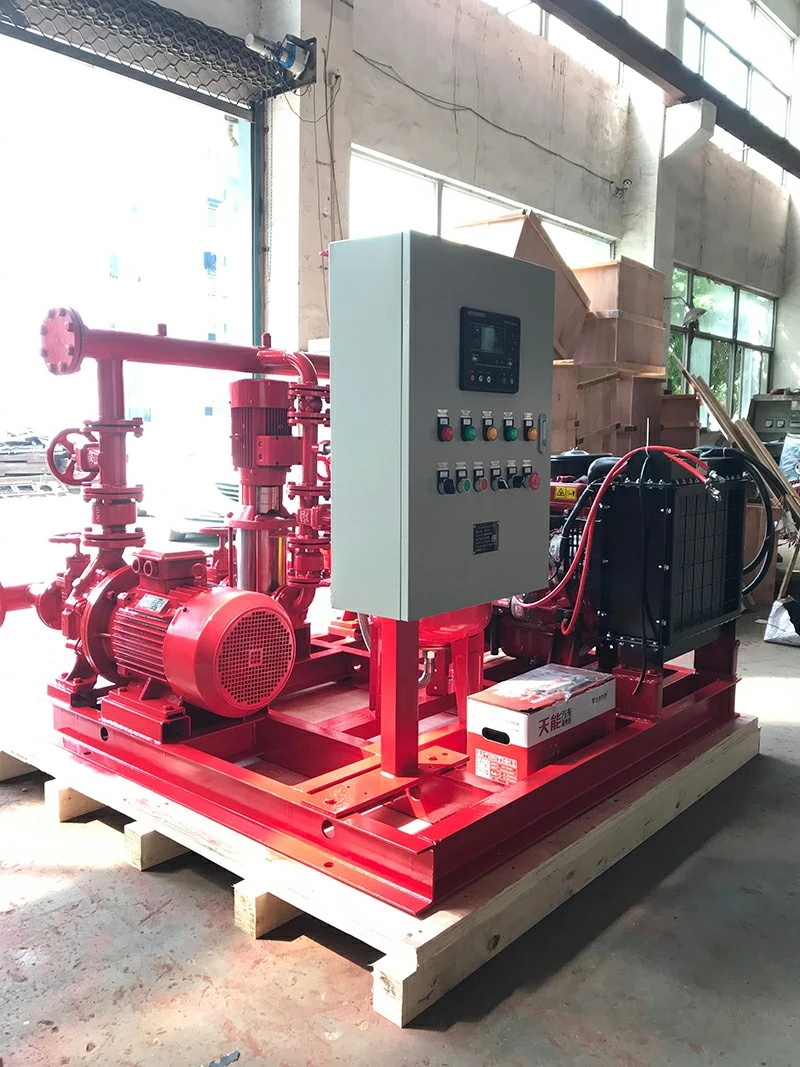

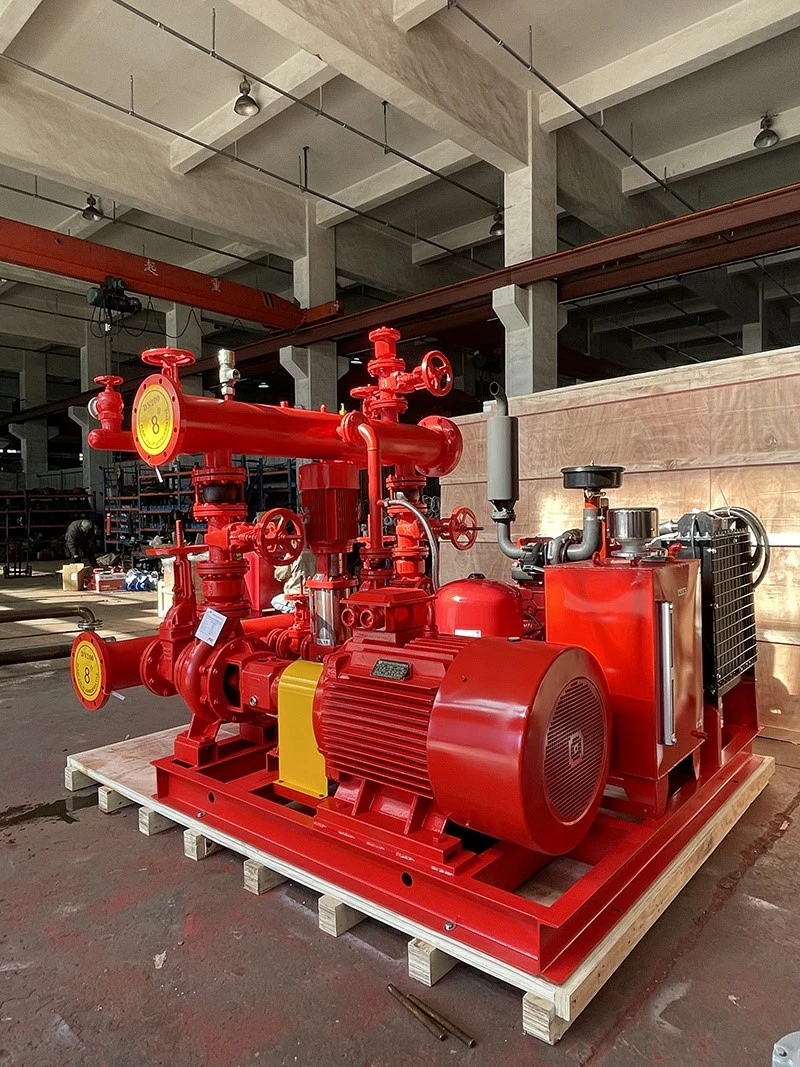

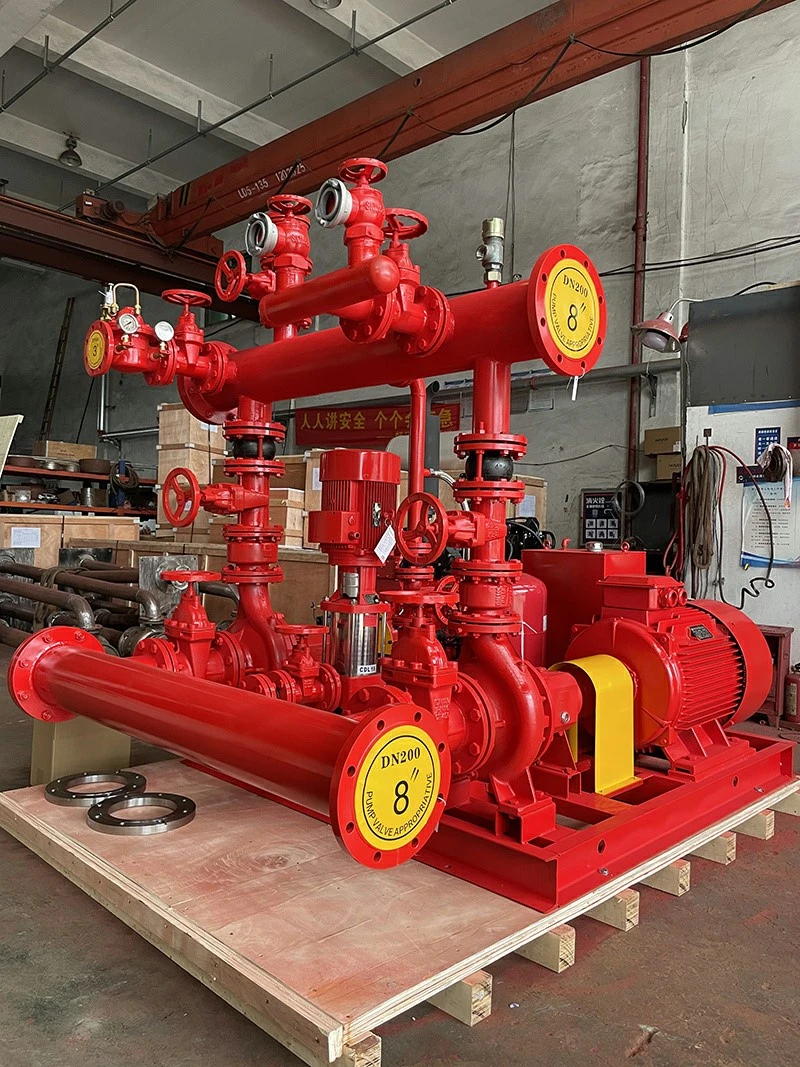

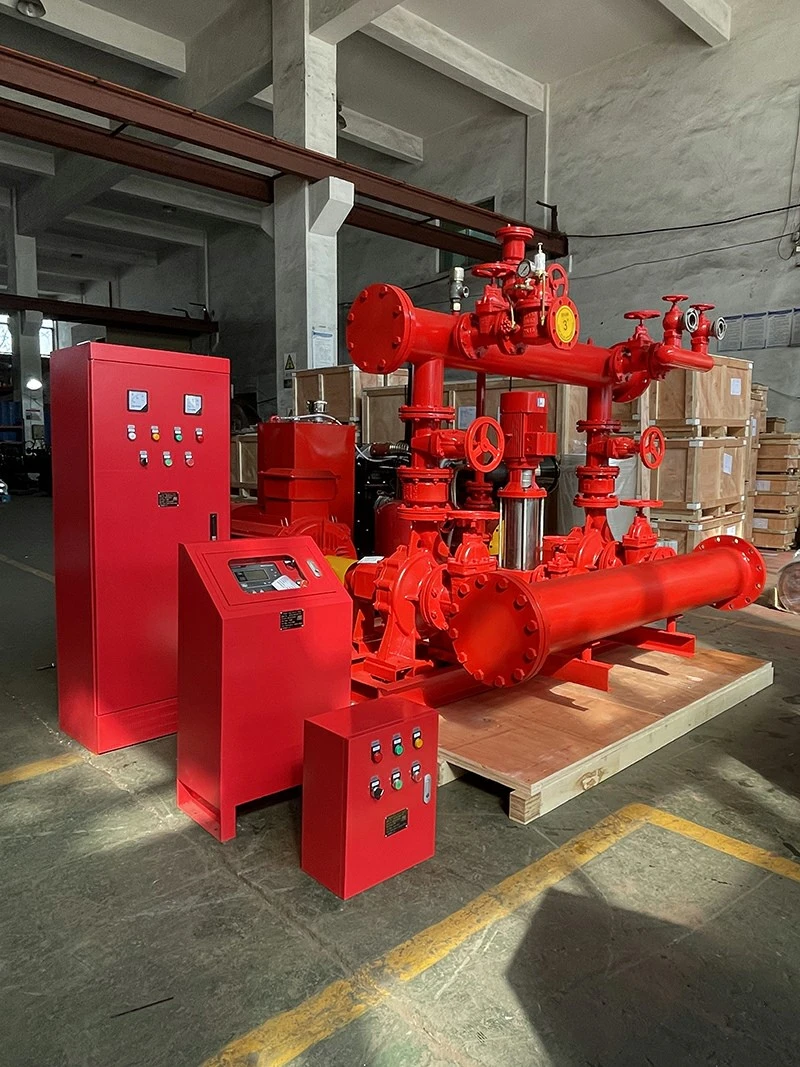

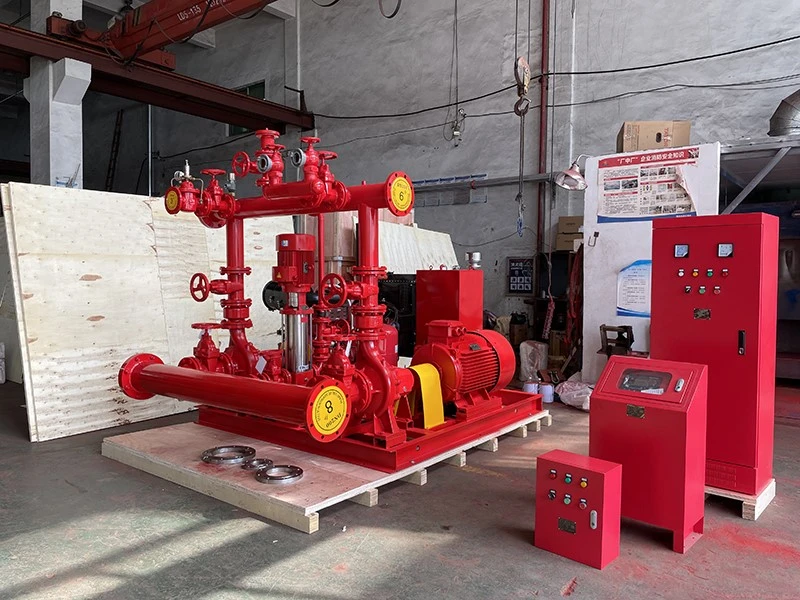

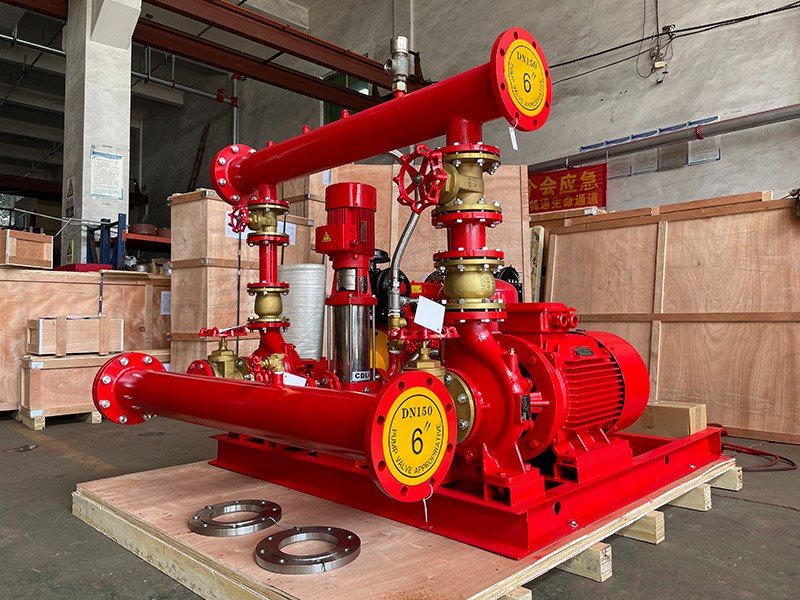

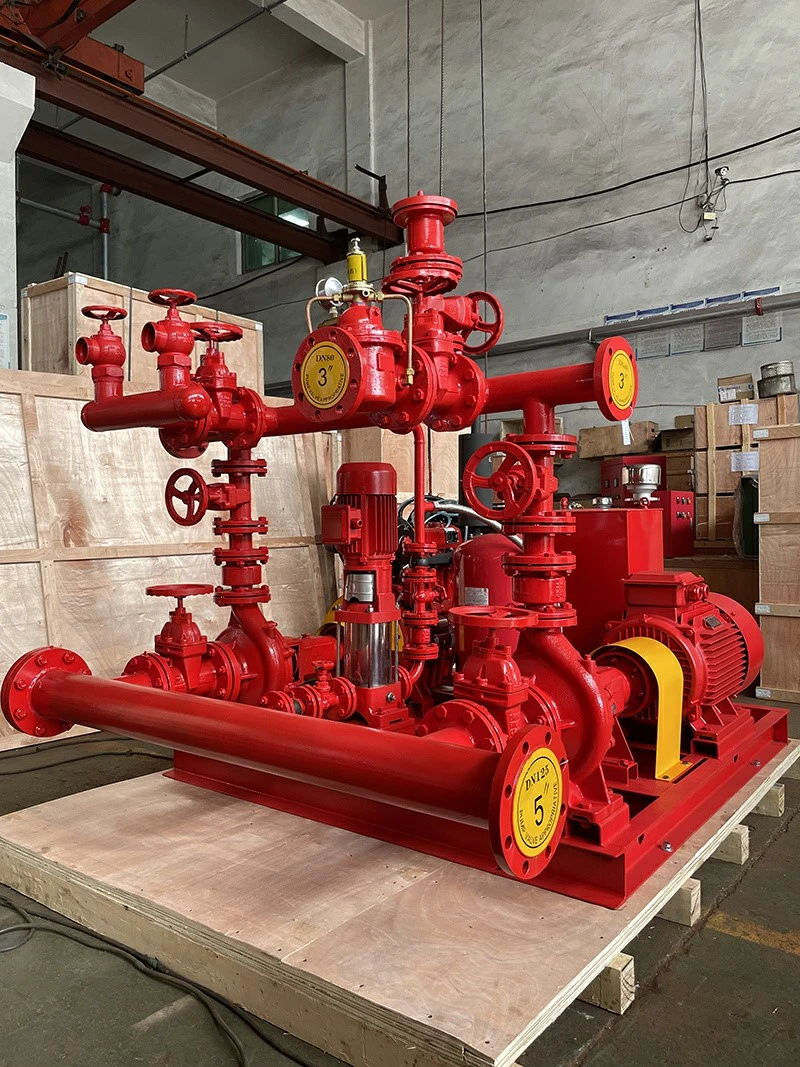

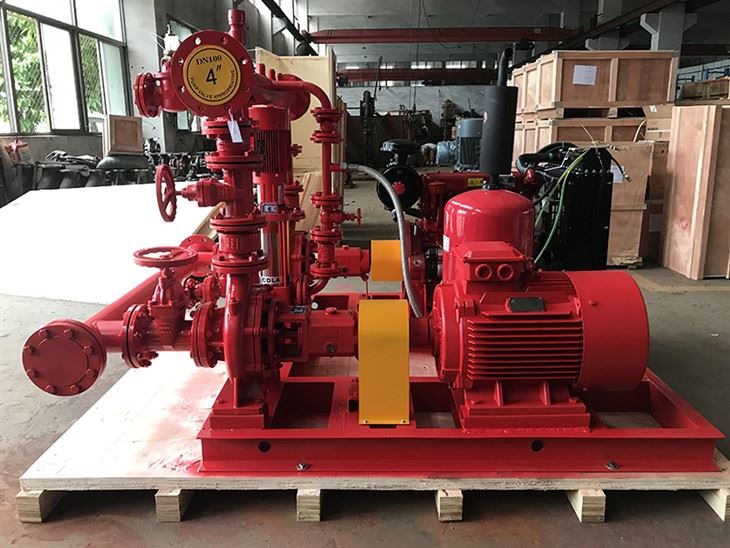

The full set is equipped with an electric main fire pump, diesel emergency standby fire pump, electric jockey pump, pressure vessel, integrated piping system, common skid-mounted base and dedicated pump control cabinet.

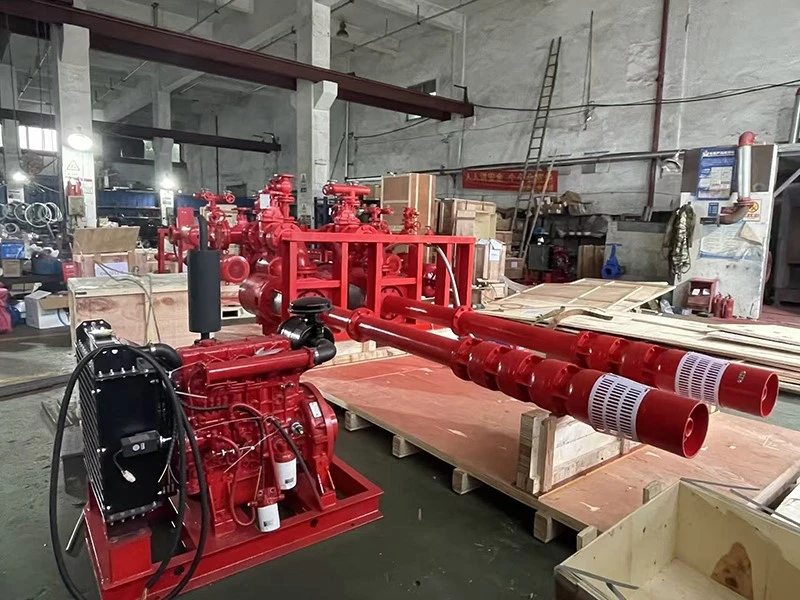

We can also carry out reasonable collocation and combination as per client requirements, with optional configurations including submersible long-shaft fire pump assemblies.
- Flow 50GPM--5000GPM / 10m3/h-1100m3/h / 2.7-300L/S
- Head/Pressure 3-20bar / 30-200m / 45-290PSI
- Switch Automatically among the three pumps
- Both Manual and Automatic operation is available
- Can work when the power is off
- Customized size and pump group
- NFPA20 Standard Skid mounted complete fire fighting unit can be customized
- High efficient motor with protection IP55 class F
- 220V-460V various voltages, 50HZ-60HZ
- Speed: 1450r/m, 1750 r/m, 2900 r/m, 3500r/m.
- Pump case with Anti-corrosive coating
- With NSK/SKF bearings, wear resistance mechanical seal
- Different Mounting Styles, easy installation
We have different designs for fire pump groups which also can be customized
- EDJ- Electric pump+ Diesel pump+ Jockey pump +Control Cabinet design;

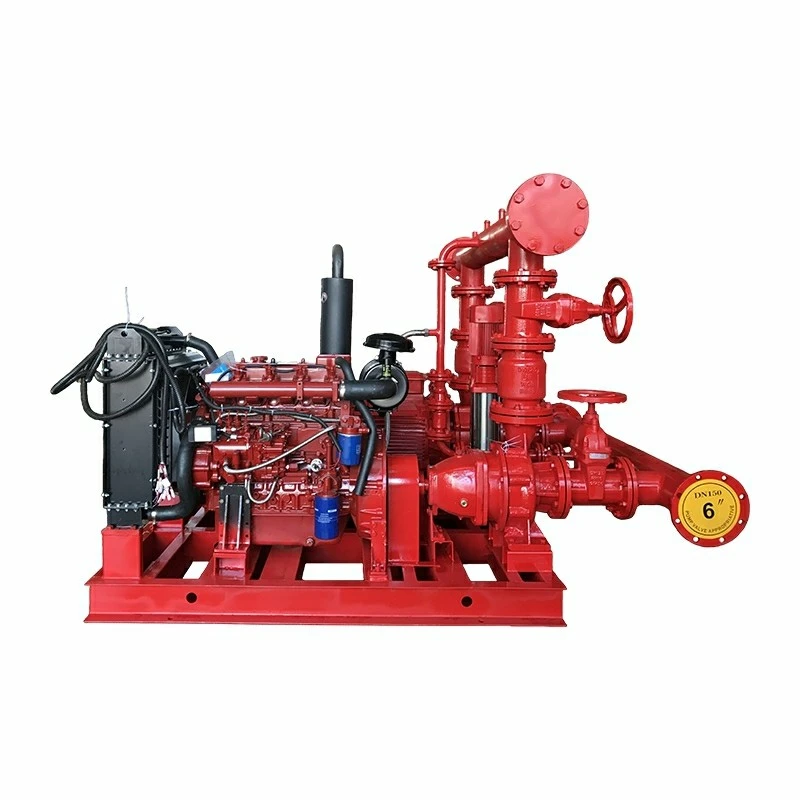

- DJ - Diesel pump+ Jockey pump+ Control Cabinet design;
- EJ - Electric pump+ Jockey pump+ Control Cabinet design;
- ED - Electric pump+ Diesel pump+ Control Cabinet design;
- EE- Electric pump+ Electric pump+ Control Cabinet design
- Pump type, Pressure tank, control cabinet, designs and material all can be customized.
