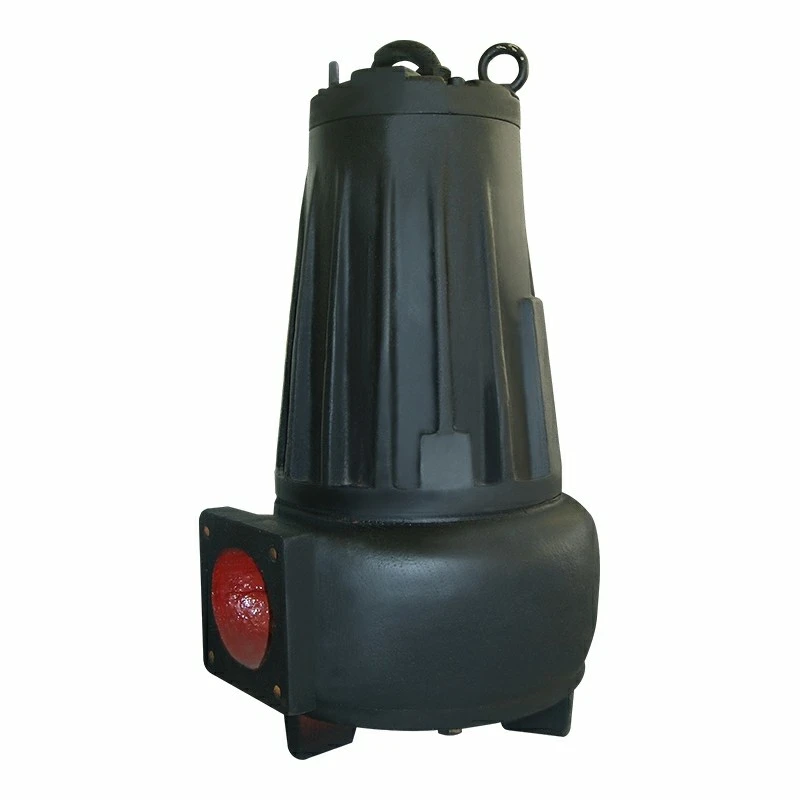

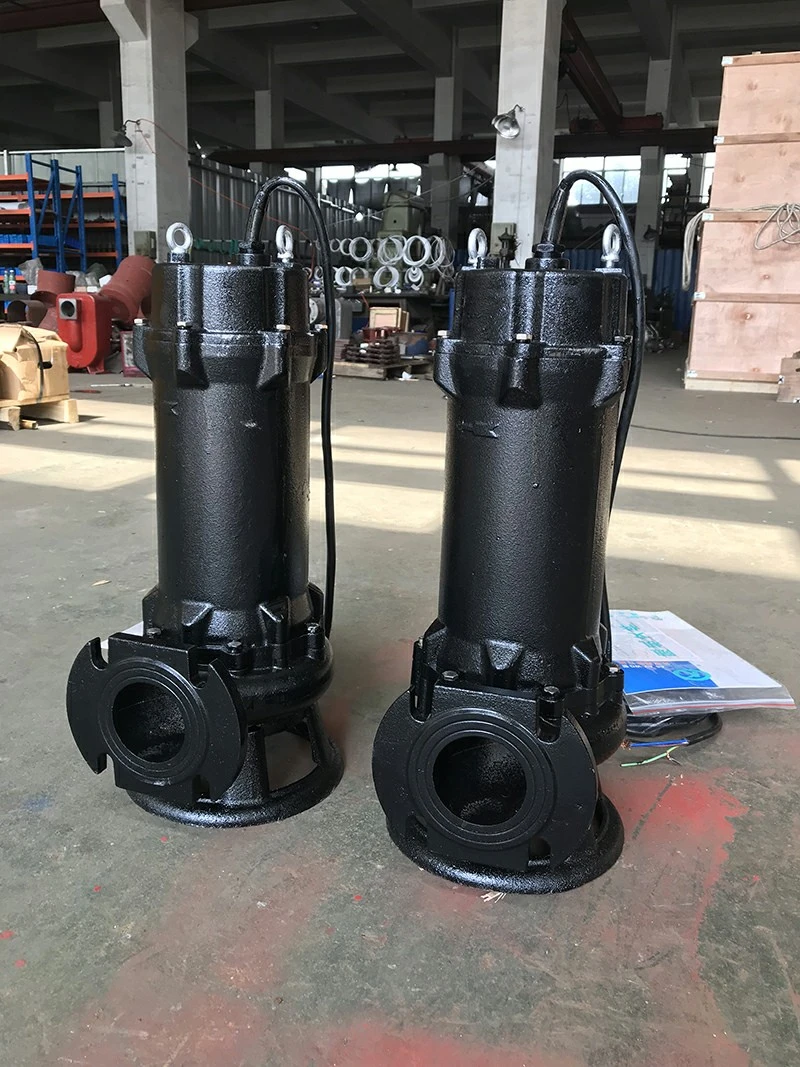

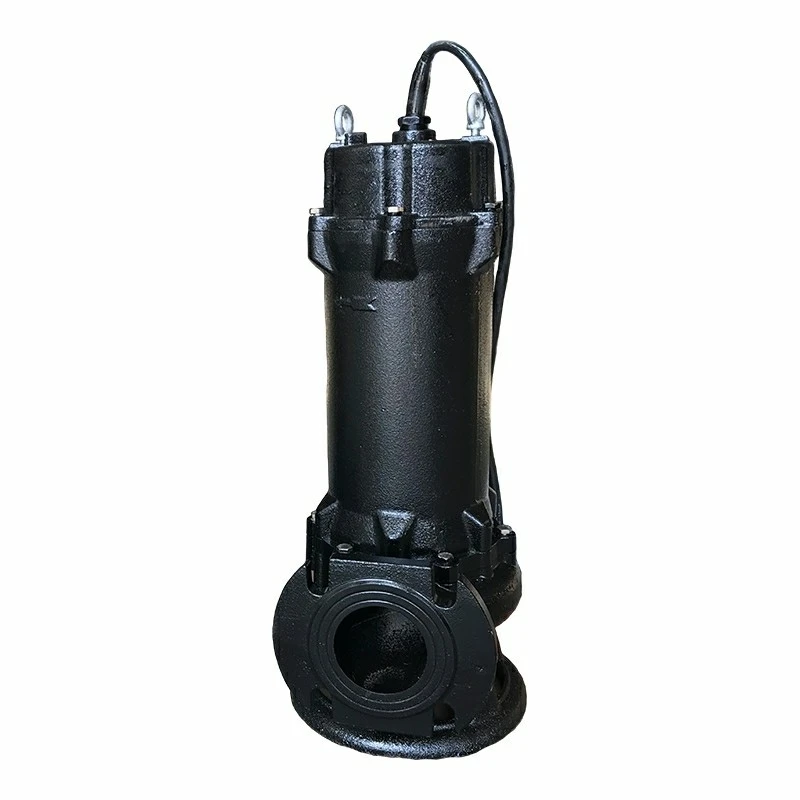

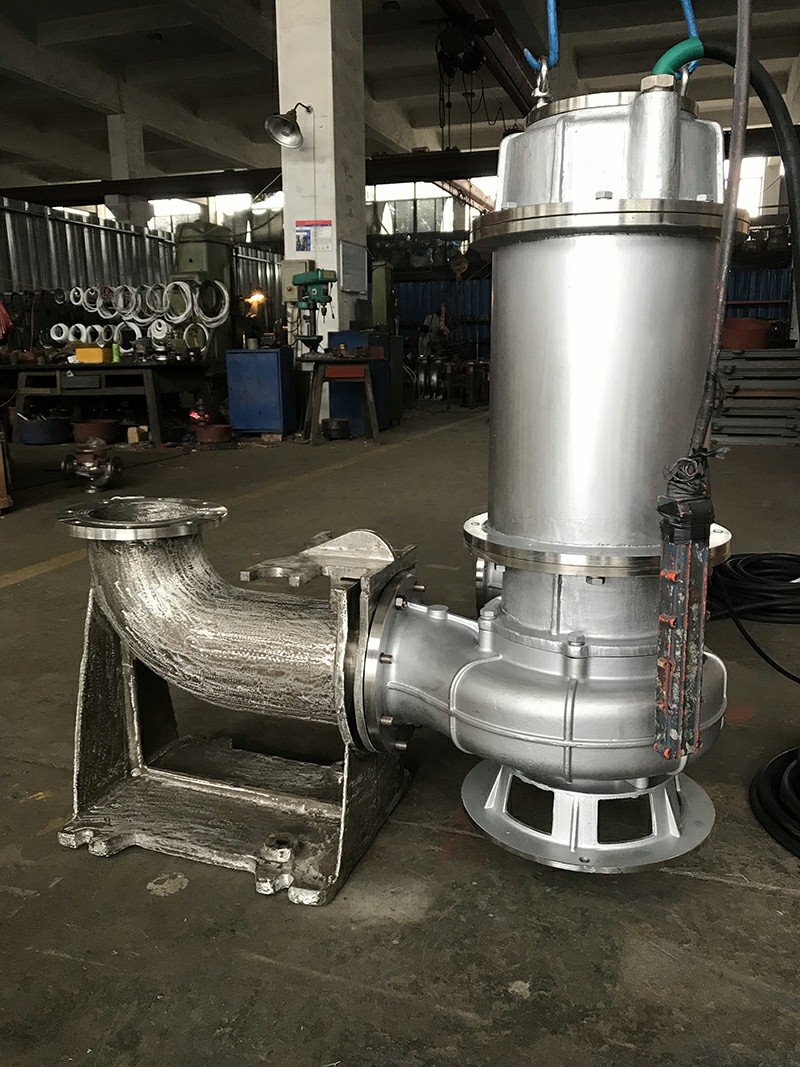

CNWQ Shredder Submersible Sewage Pump
The GNWQ Series Cutter Submersible Sewage Cutter Pump is purpose-built to address frequent blockages caused by fibrous and solid contaminants in wastewater. A unique spiral integrated cutter assembly is installed at the suction end. As the cutter plate and impeller rotate at high speed, powerful shear force shreds long fibers, plastic film, textile rags, straw and sanitary waste into fine particles. This design enables unobstructed discharge and effectively prevents clogging of impellers and downstream pipelines.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of cnwq shredder submersible sewage pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized cnwq shredder submersible sewage pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
≤150m3/h |
|
Head |
≤25m |
|
Speed |
980rpm, 1450rpm and 2900rpm (50HZ) 1170rpm and 3500rpm (60HZ) |
|
Inlet/Outlet Diameter |
DN25mm~DN150mm |
|
Motor Protection Class |
IP68 |
|
Medium Temperature |
≤40℃ |
|
Working Pressure |
≤1.0MPa |
Main Application
This pump is widely applied in municipal sewage treatment, basement drainage of urban high-rise buildings, septic tank waste drainage for hospitals, hotels and restaurants, construction site slurry transfer, aquaculture wastewater lifting and rural biogas digester cleaning. It is particularly ideal for sewage drainage systems carrying abundant solid debris and long fibers where pre-filtration is unavailable.
