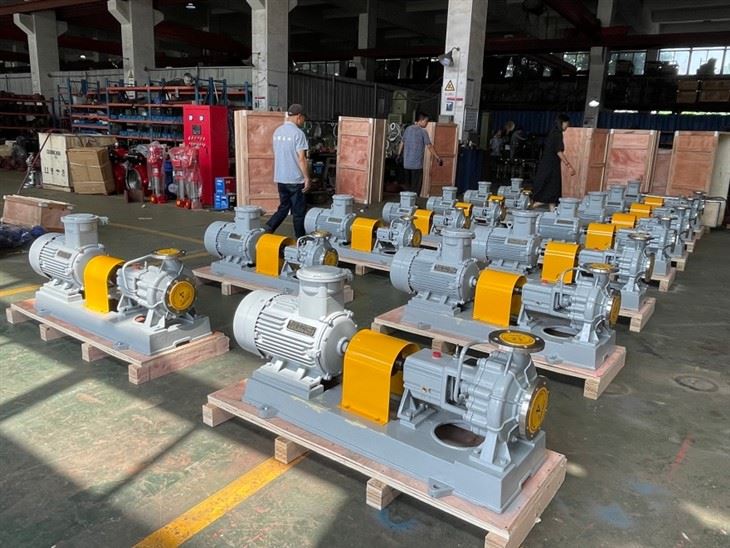

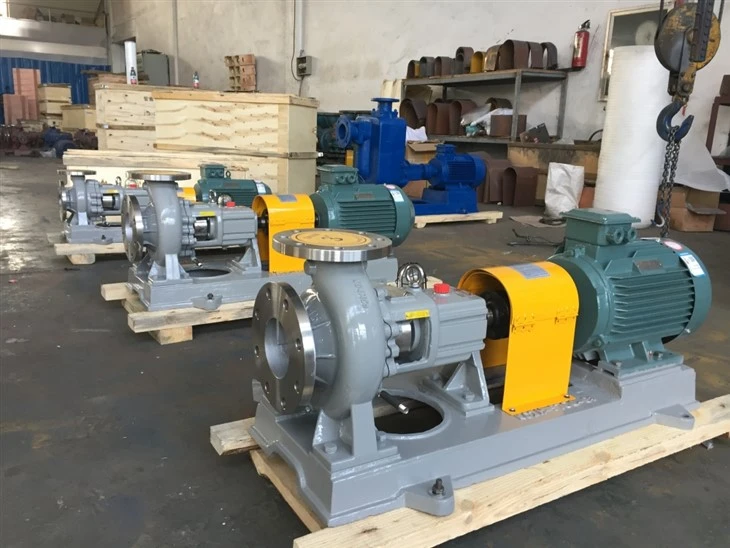

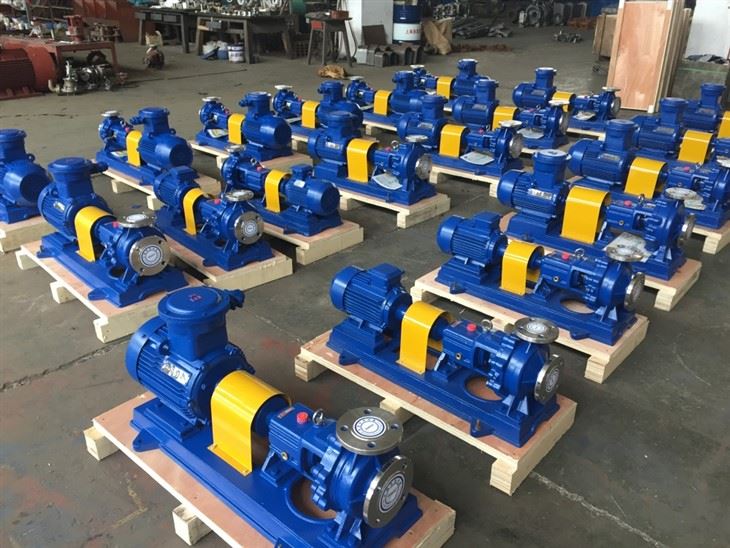

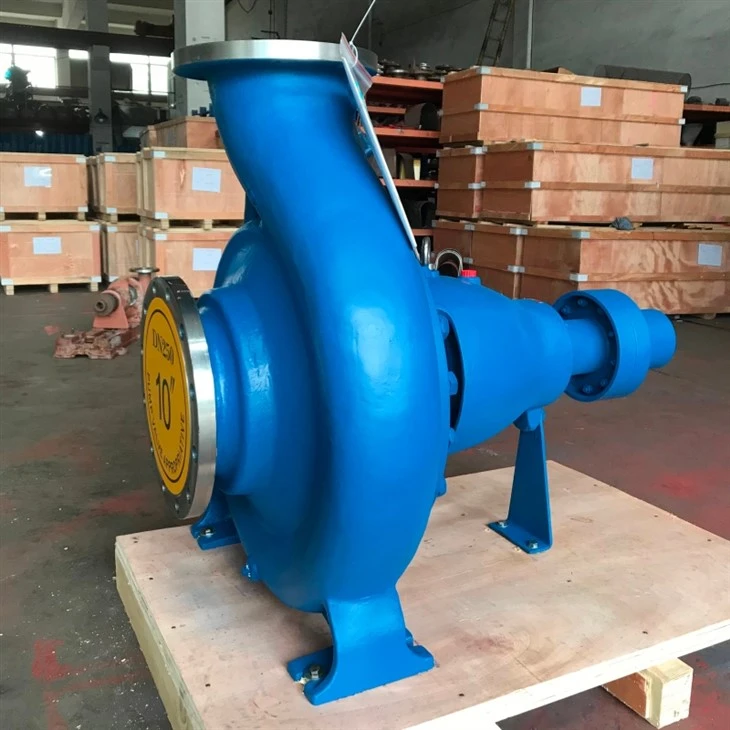

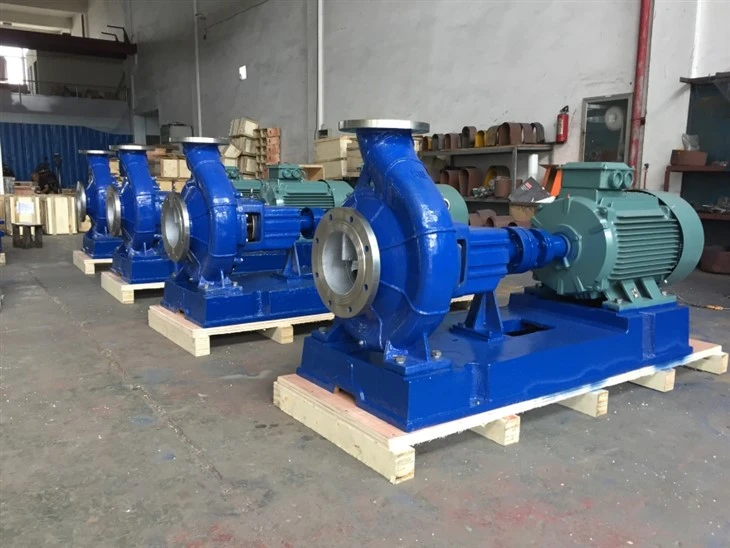

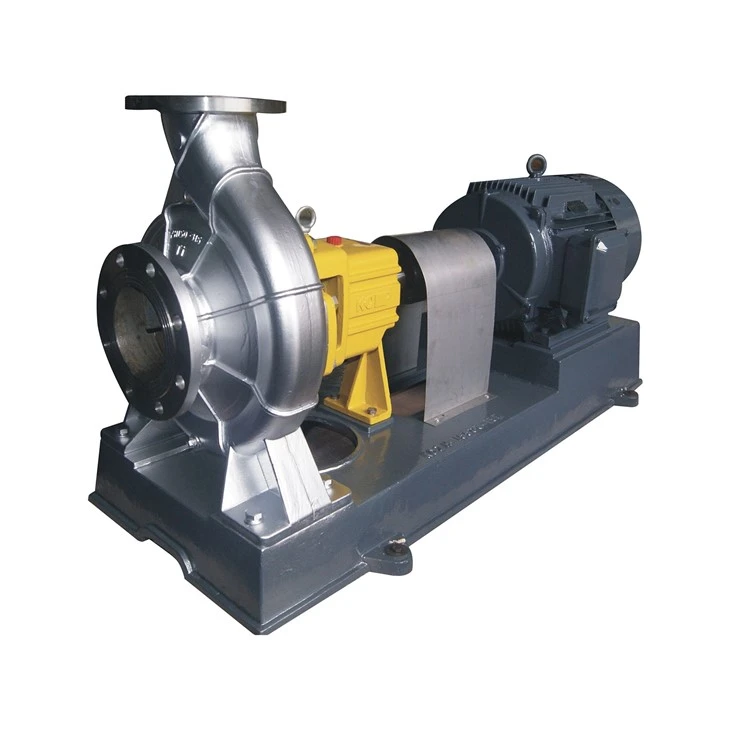

KIH Series Chemical Pump
The KIH chemical pump is manufactured in accordance with the ISO 2858 standard. It is a horizontal anti-corrosive process transfer pump. It can also be customized according to API flush plans.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of kih series chemical pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized kih series chemical pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
| Flow | 3.4~600m3/h |
| Head | 3.6~132m |
| Speed | 1450rpm and 2900rpm (50HZ), 1750rpm and 3500rpm (60HZ) |
| Power | 0.55~160kW |
| Inlet/Outlet Diameter | DN25mm~DN250mm |
| Medium Density | 1.0~1.84 g/cm3 |
| Medium Temperature | -40℃~180℃ |
| Working Pressure | ≤1.6MPa |
KIH model code meaning, e.g.KIH80-65-160
KIH=Chemical Centrifugal Pump;
80=Inlet Diameter (mm);
65=Outlet Diameter (mm);
160=Impeller Nominal Diameter (mm).
Positioning
It is a universal standardized chemical pump designed for round-the-clock transportation of various corrosive chemical liquids.
Advantages
Superior Corrosion Resistance
Wetted components are constructed of stainless steel to provide outstanding acid and alkali corrosion resistance;
High Efficiency and Energy Savings
Equipped with in-house machined parts, the pump achieves high efficiency and energy efficiency;
Leak-Free Operation
Fitted with leak-proof mechanical seals to completely stop medium leakage (packing seals are also available on request);
Easy Maintenance and Customization
Easy disassembly and routine maintenance. Custom performance parameters and OEM services are available on request.
Applications
Widely used in pharmaceuticals, electroplating, the chemical industry, printing, wastewater treatment, food brewing and other industrial applications to transport corrosive liquids.
