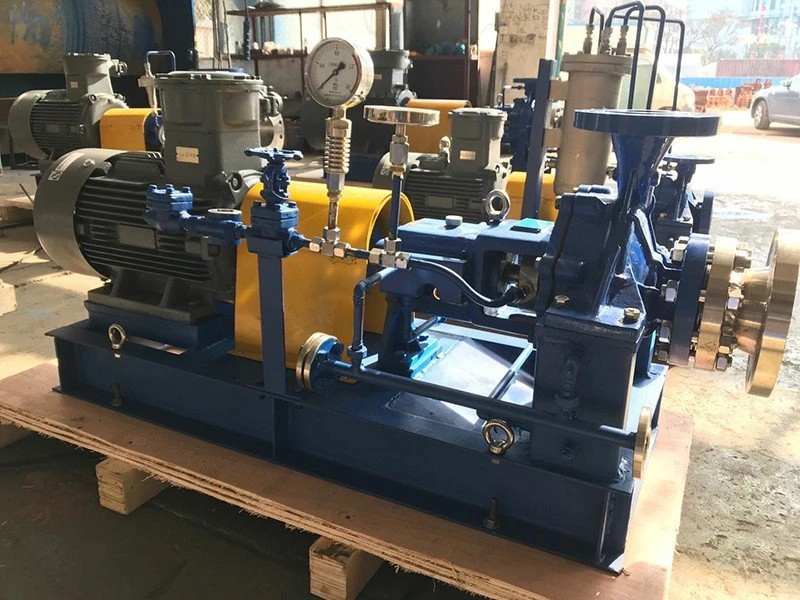

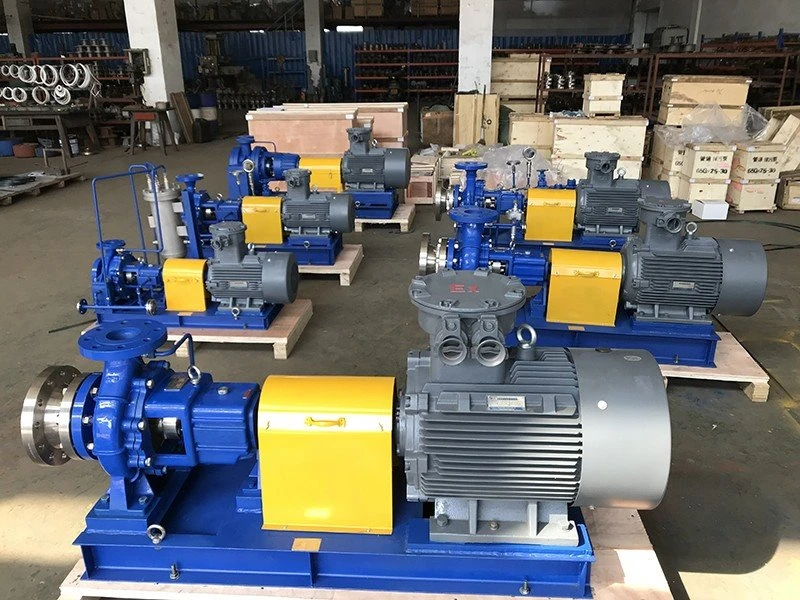

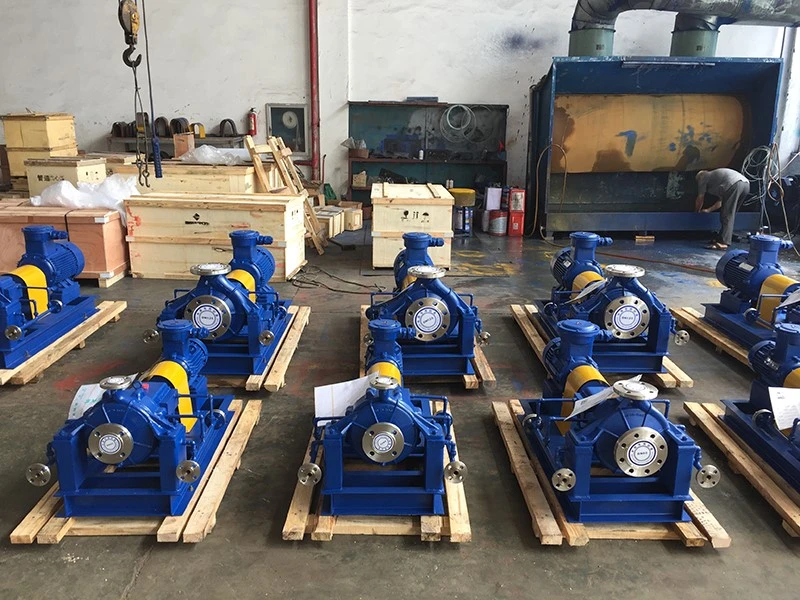

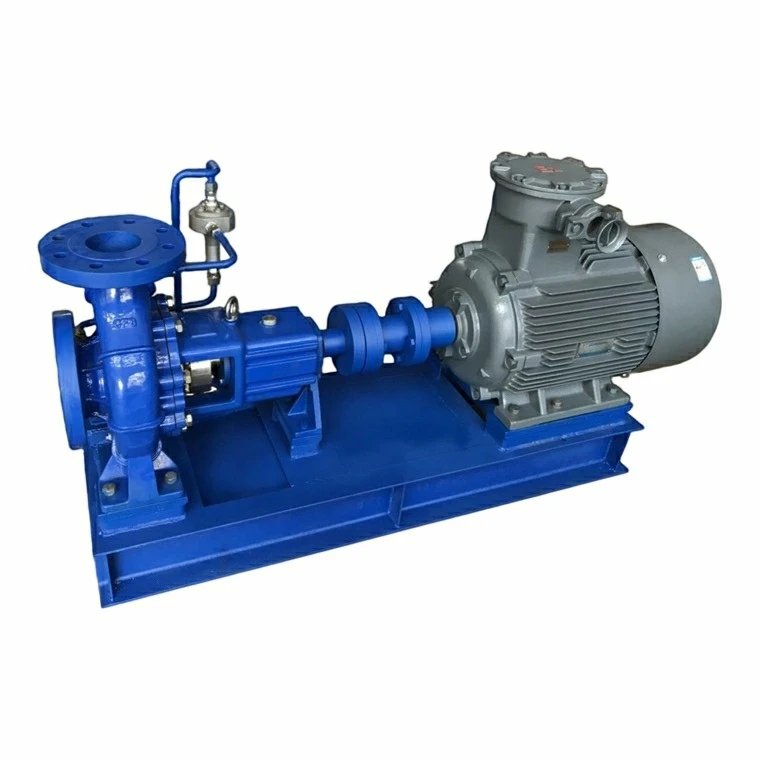

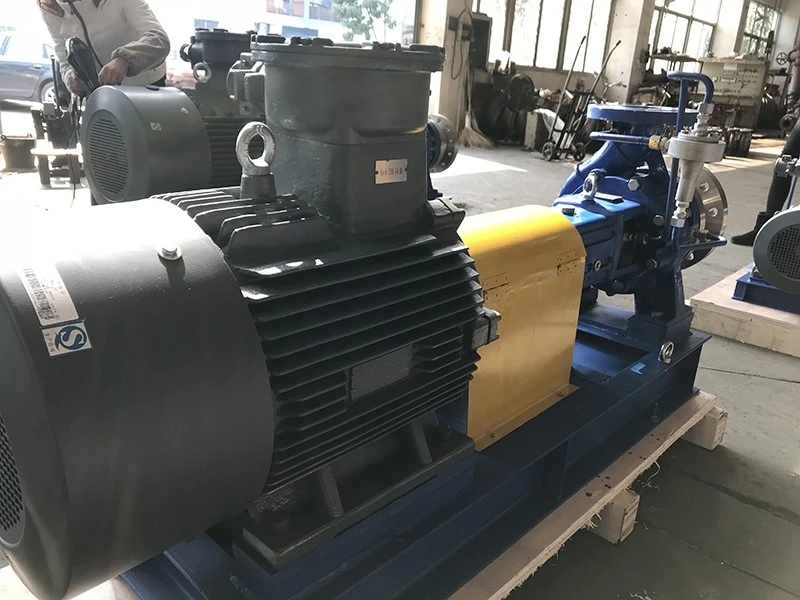

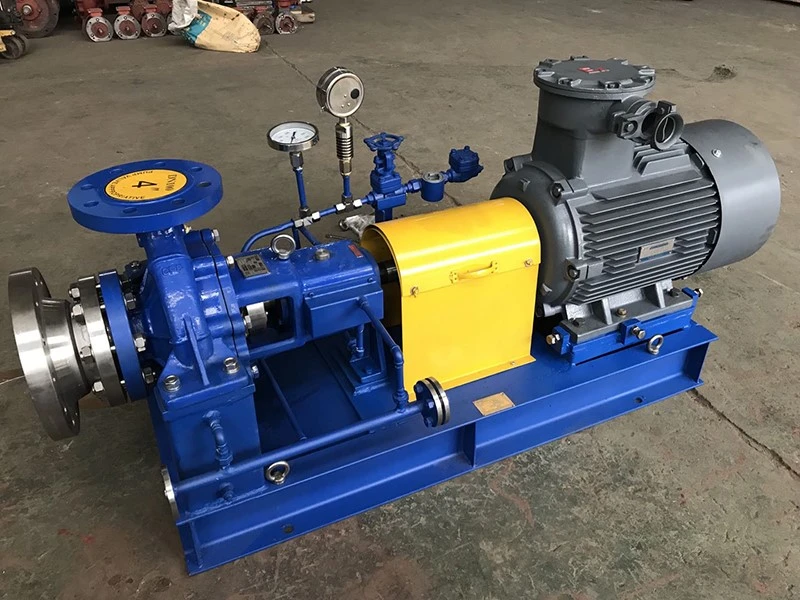

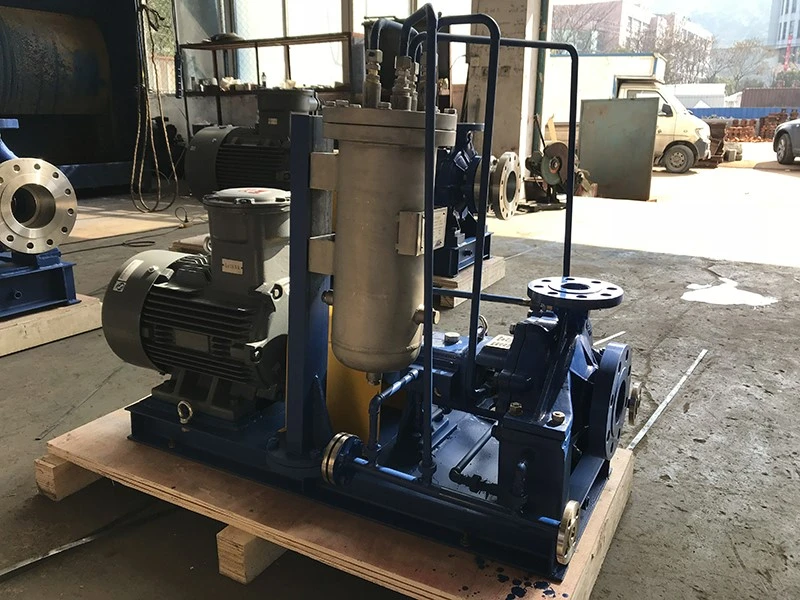

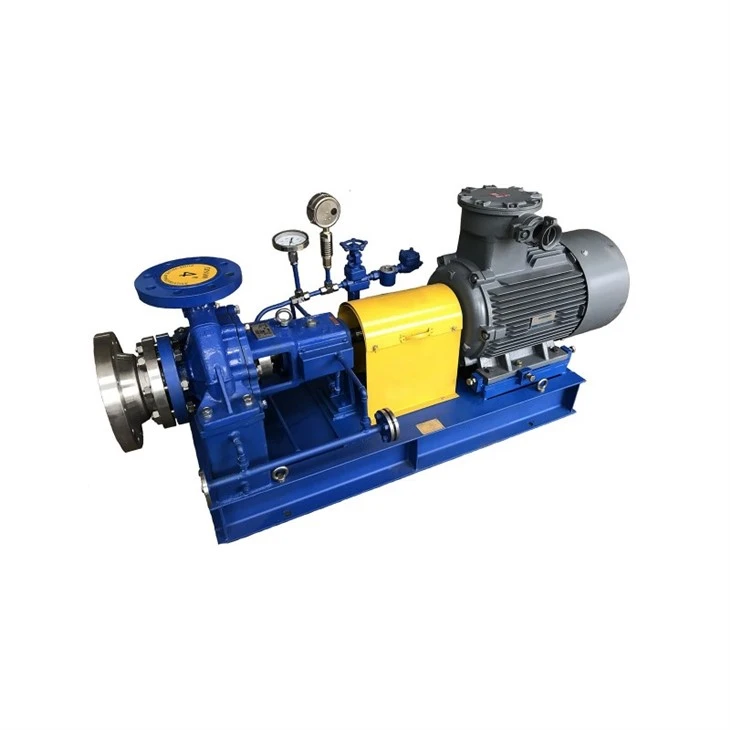

ZA/ZE Chemical Process Pump
The ZA and ZE series are horizontal, single-stage, single-suction cantilever centrifugal process pumps, fully engineered in compliance with the API 610 international standard. They are classified as API OH1 (ZA model, foot-mounted) and API OH2 (ZE model, centerline-mounted heavy-duty), respectively.
Both models adopt identical hydraulic designs, bearing assemblies, and mechanical seal chamber structures, ensuring excellent spare parts interchangeability. The core differences lie in the casing support structure, pressure rating, and high-temperature resistance.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of za/ze chemical process pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized za/ze chemical process pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
3.4~600m3/h |
|
Head |
3.6~132m |
|
Speed |
1450rpm and 2900rpm (50HZ), 1750rpm and 3500rpm (60HZ) |
|
Power |
0.55~160kW |
|
Inlet/Outlet Diameter |
DN25mm~DN250mm |
|
Medium Density |
1.0~1.84 g/cm3 |
|
Medium Temperature |
-80℃~350℃ (ZA) -80℃~450℃ (ZE) |
|
Working Pressure |
≤2.5MPa (ZA) ≤5.0MPa (ZE) |
- ZA model code meaning, e.g.ZA100-80-200
- ZA=Chemical Process Pump;
- 100=Inlet Diameter (mm);
- 80=Outlet Diameter (mm);
- 200=Impeller Nominal Diameter (mm).
Core Differences Between ZA and ZE Series Pump
• ZA Pump (OH1): Foot-mounted design with a maximum design pressure of 2.5 MPa. Cost-effective for conventional processes under normal and moderate temperature conditions.

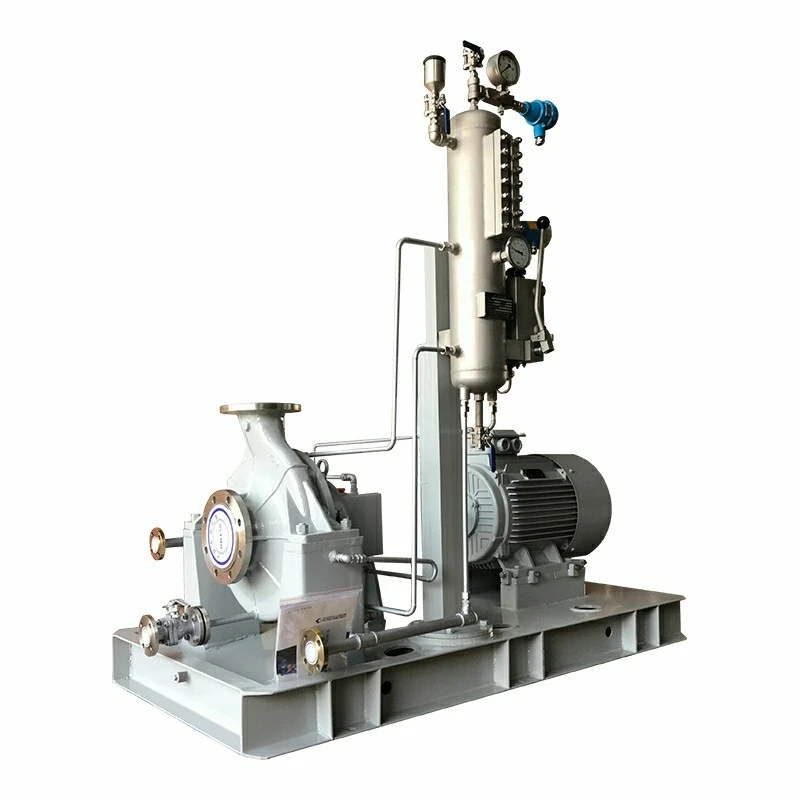

• ZE Pump (OH2): Centerline-supported casing structure effectively compensates thermal expansion. It boasts a maximum design pressure of up to 5.0 MPa, specially engineered for high-temperature, high-pressure and harsh continuous-duty applications.
Applications
Petroleum refining, coal chemicals, fine chemicals, pharmaceuticals, fertilizers, thermal power, pulp & paper, food processing, seawater desalination, wastewater treatment, offshore industrial facilities.
