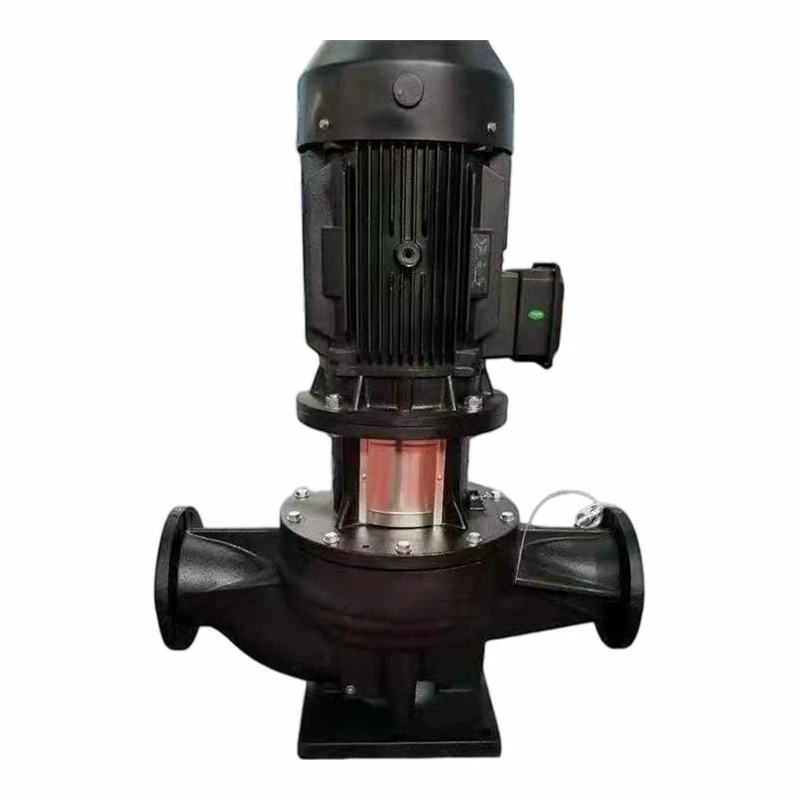

TD Vertical Centrifugal Pump
The TD Vertical Inline Centrifugal Pump is a single-stage, single-suction centrifugal pump designed for efficient and reliable liquid circulation. Featuring vertical inline structure, its suction and discharge flanges are arranged on a common centerline, allowing direct installation inline with piping just like a pipeline valve. With compact construction and minimum space occupation, the pump enables rapid installation and removes requirements for complicated foundation fabrication.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of td vertical centrifugal pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized td vertical centrifugal pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
4~1200m3/h |
|
Head |
5~100m |
|
Speed |
1450rpm and 2900rpm (50HZ) 1750rpm and 3500rpm (60HZ) |
|
Inlet/Outlet Diameter |
DN25mm~DN300mm |
|
Medium Temperature |
-15℃~110℃ |
|
Working Pressure |
≤1.6MPa |
Main Application
It is widely adopted for HVAC circulation, water supply boosting, industrial liquid conveying, as well as domestic hot water circulation and cooling systems.
