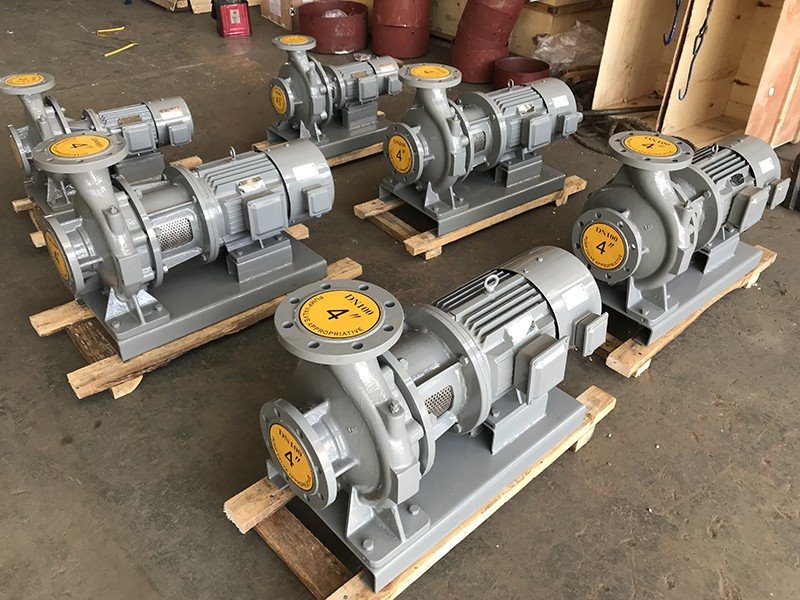

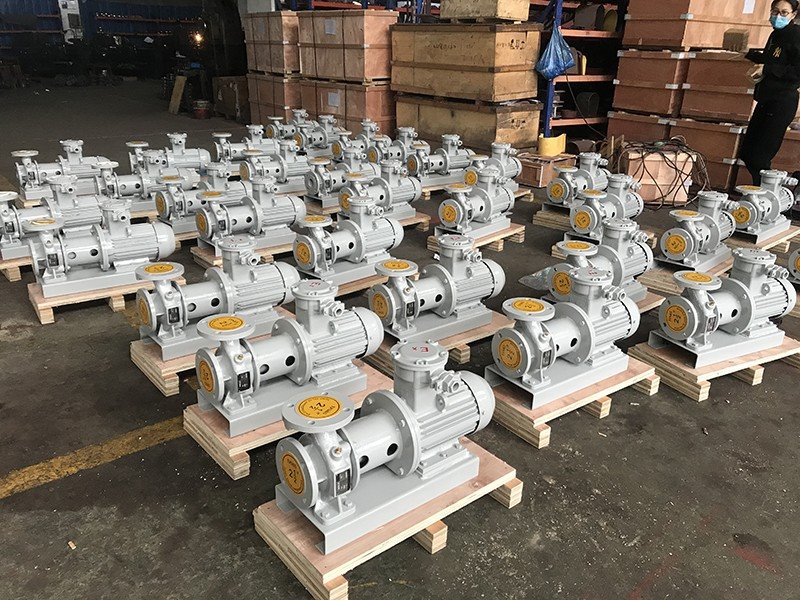

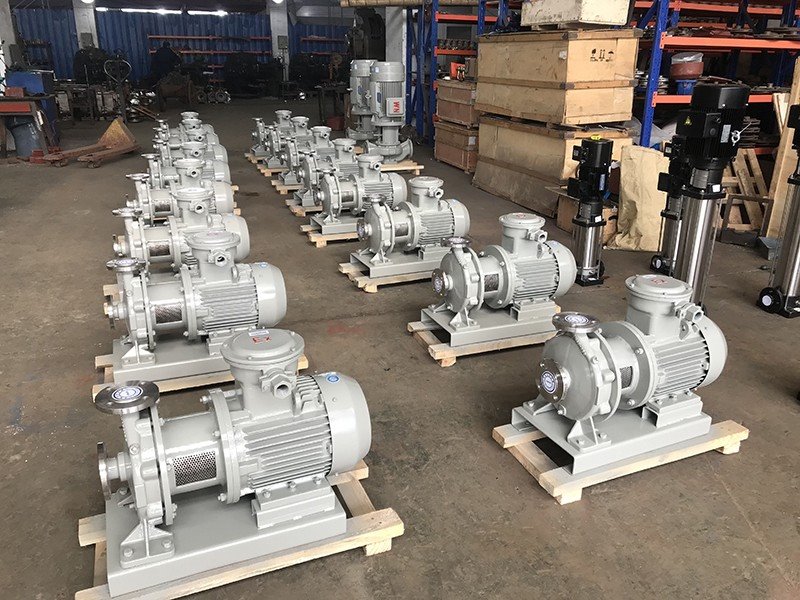

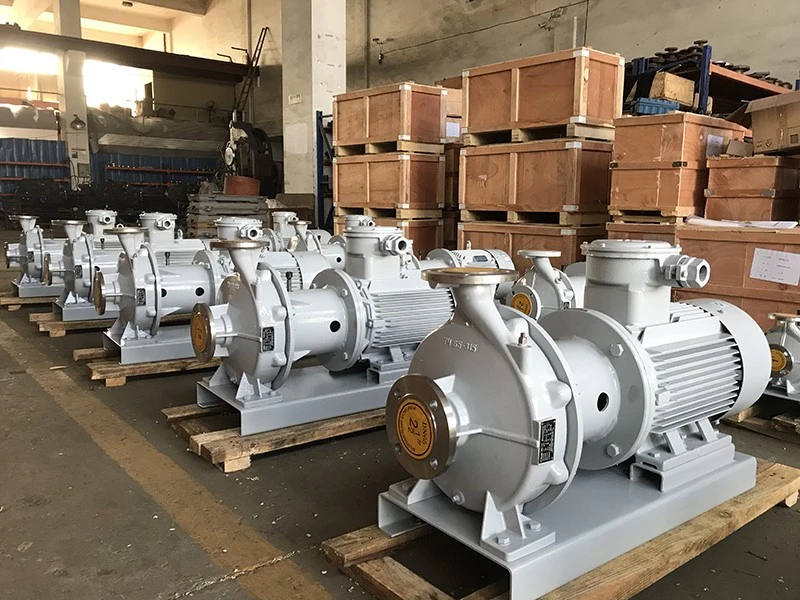

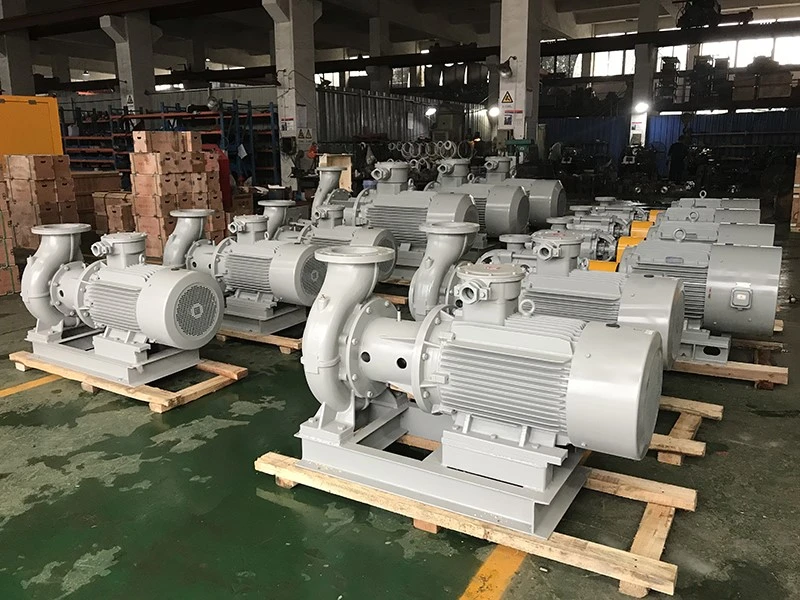

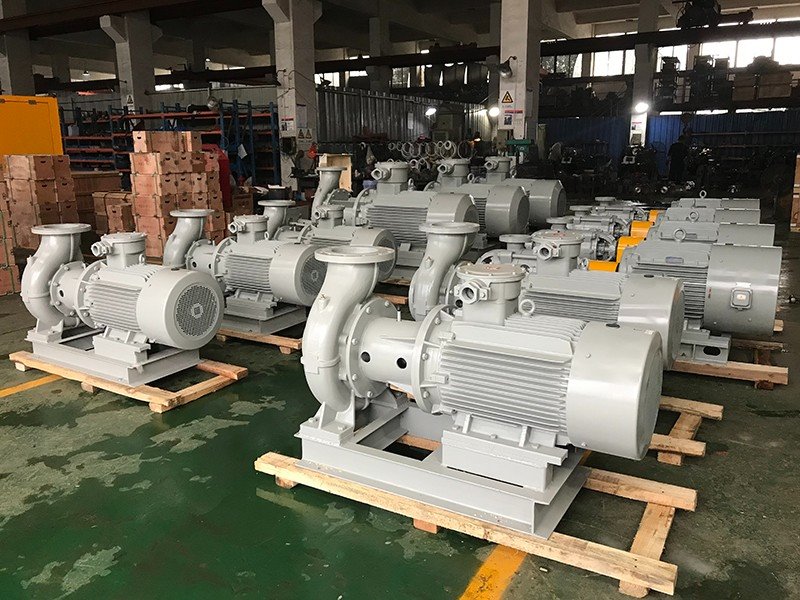

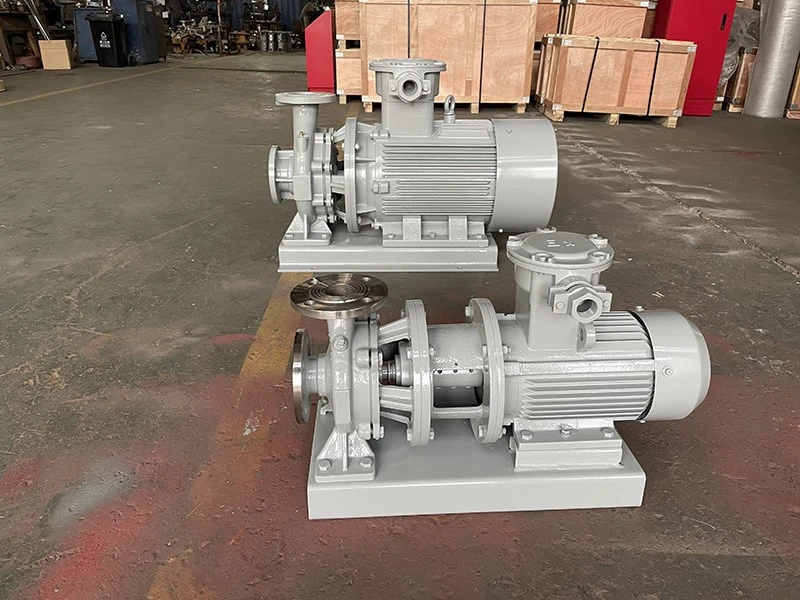

Horizontal New Type Inline Pump

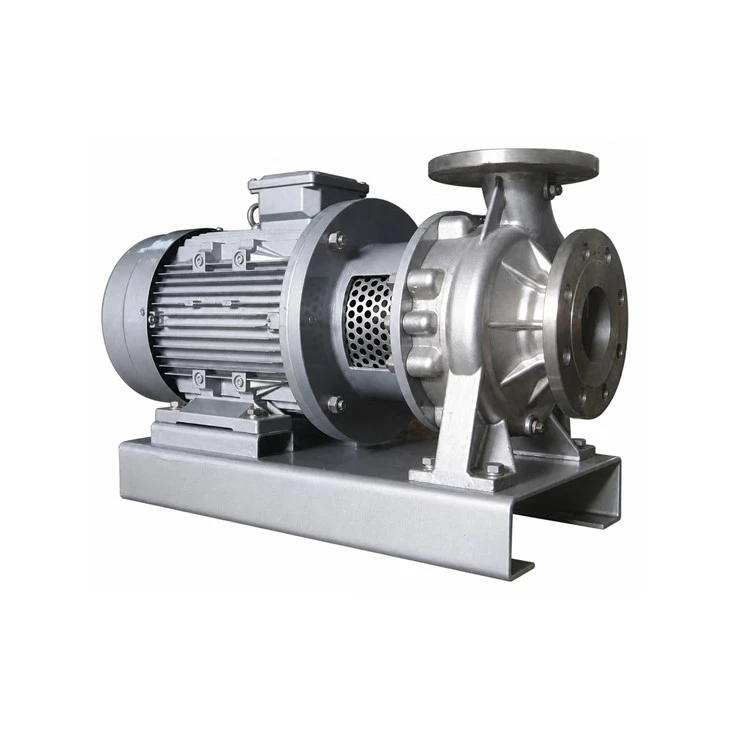

The KWS horizontal coupled inline centrifugal pump adopts split transmission structure, fitted with coupling and safety guard between pump casing and horizontal motor, which is structurally different from common direct-coupled pipeline pumps.
Equipped with integral horizontal base for floor mounting, its suction and discharge flanges are horizontally centered on the same axis, enabling direct inline installation into existing pipeline systems. Designed complying with GB/T 5656 standard, this pump is specially tailored for high-power working conditions.
The intermediate coupling effectively absorbs operational vibration and compensates minor shaft alignment error, greatly lowering abnormal noise and shaft wear issues frequently occurring on heavy-duty direct-connected pumps. Multiple customized configurations are available: cast iron / SS304 / SS316 pump casing, explosion-proof motor, VFD drive unit and high-temperature mechanical seals.

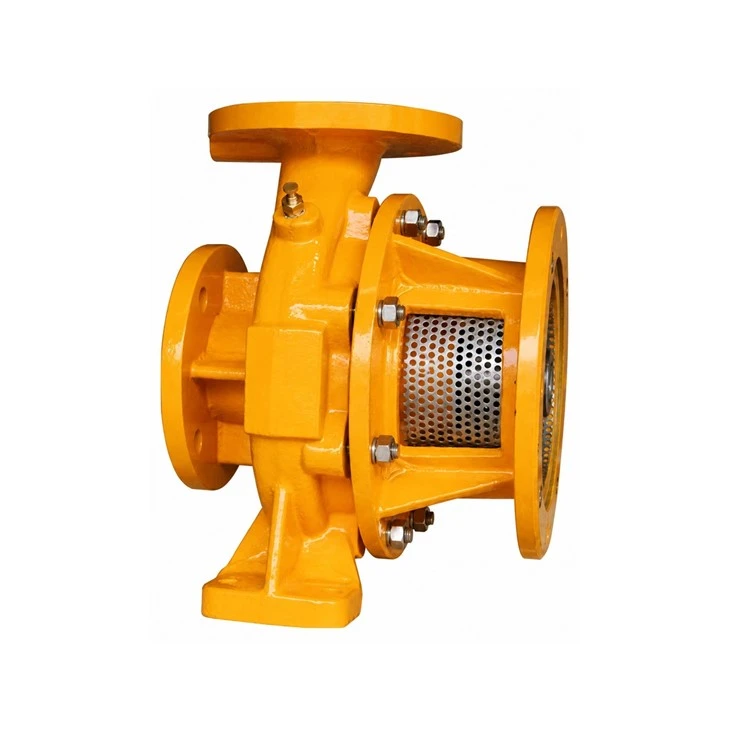

Designed with back pull-out structure, consumable parts including mechanical seal, impeller and shaft sleeve can be replaced without detaching inlet and outlet pipelines.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of horizontal new type inline pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized horizontal new type inline pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
2~1200m3/h |
|
Head |
5~150m |
|
Speed |
1450rpm and 2900rpm (50HZ) 1750rpm and 3500rpm (60HZ) |
|
Inlet/Outlet Diameter |
DN25mm~DN300mm |
|
Medium Temperature |
-15℃~120℃ |
|
Working Pressure |
≤1.6MPa |
Main Application Industries
KWS vertical inline centrifugal pump covers extensive application scenarios: hot & cold water circulation, high-rise domestic water supply, fire system pressurization, long-distance water transport, industrial process circulating boosting, landscape sprinkler and farmland irrigation.
It is suitable for conveying clear water and mediums with physical & chemical characteristics equivalent to clean water.
KWH vertical chemical centrifugal pump is engineered to convey low-viscosity corrosive media analogous to water in viscosity. It accommodates particle-free corrosive liquids or fluids with minimal fine solid impurities.
Widely applicable for mainstream industrial fields: chemical processing, food production, brewery, petroleum refining, pharmaceutical manufacturing, paper & pulp, metallurgy, power plants, water treatment, environmental protection and light textile industries.
KWY vertical oil transfer pump is engineered to handle low-viscosity lubricating oils, fuel oils, and various clear oily media.
