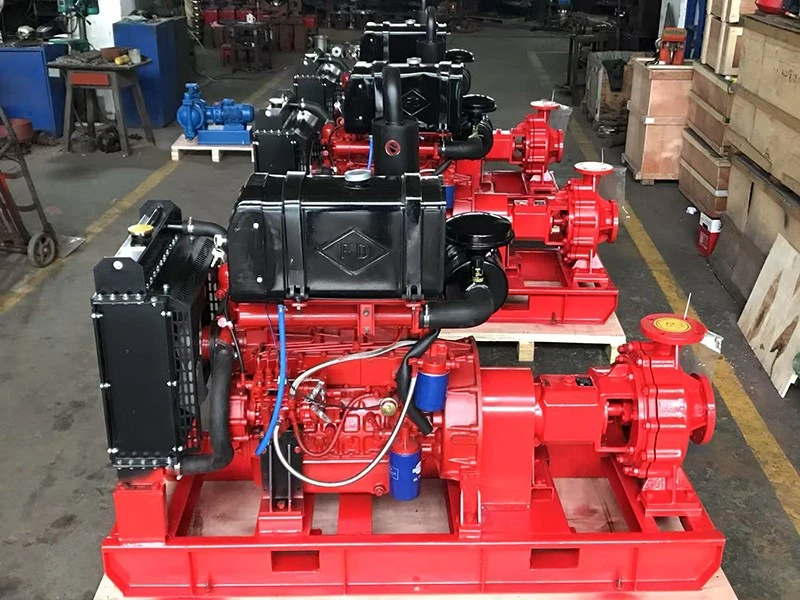

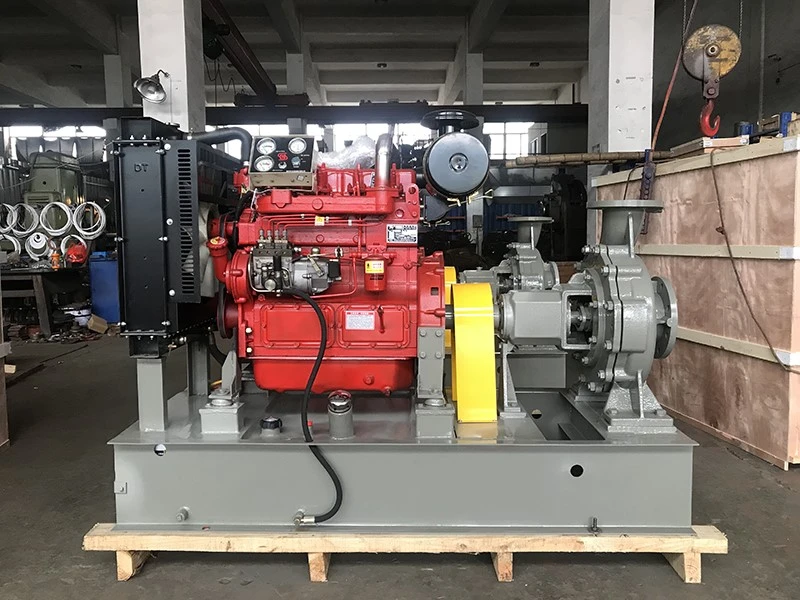

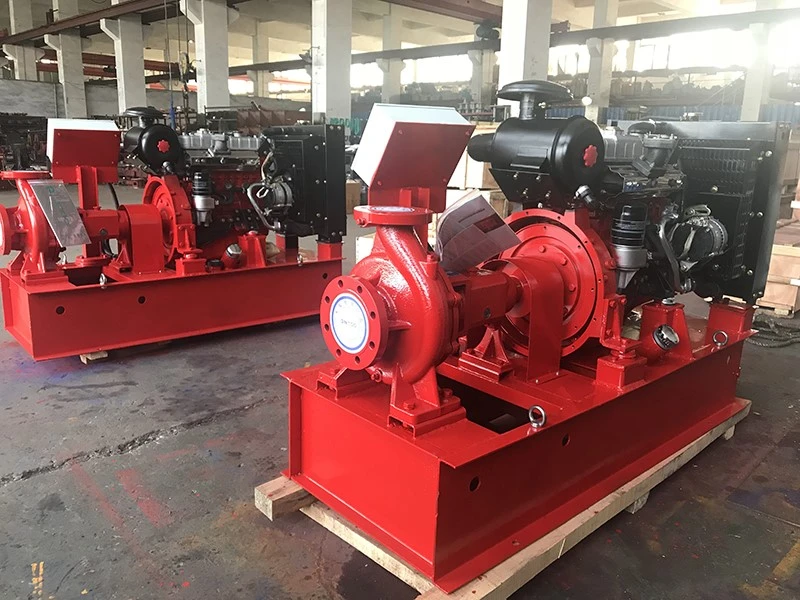

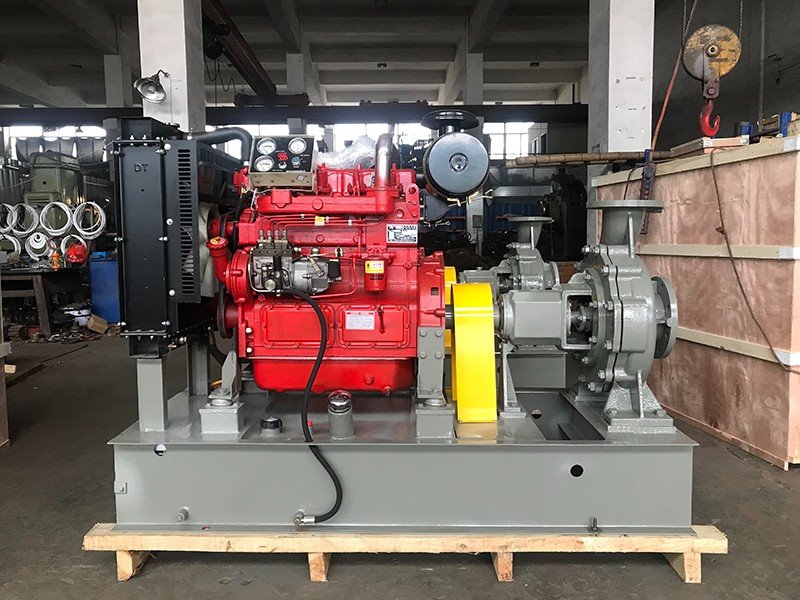

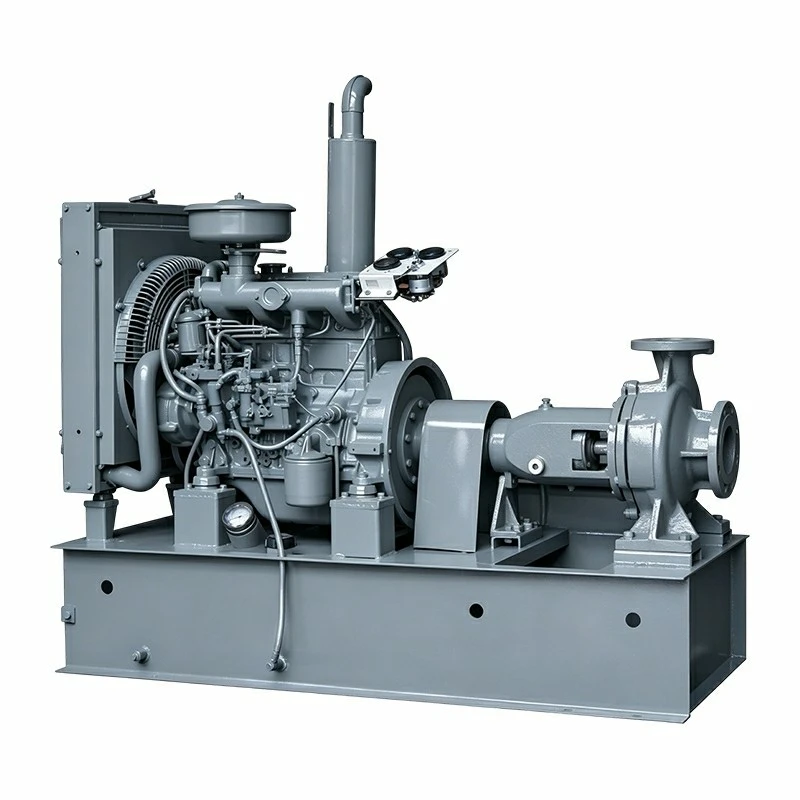

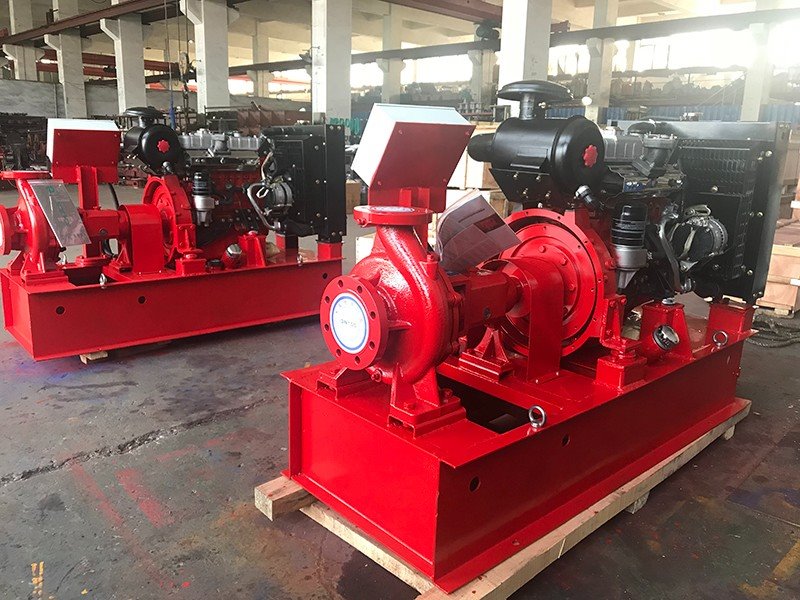

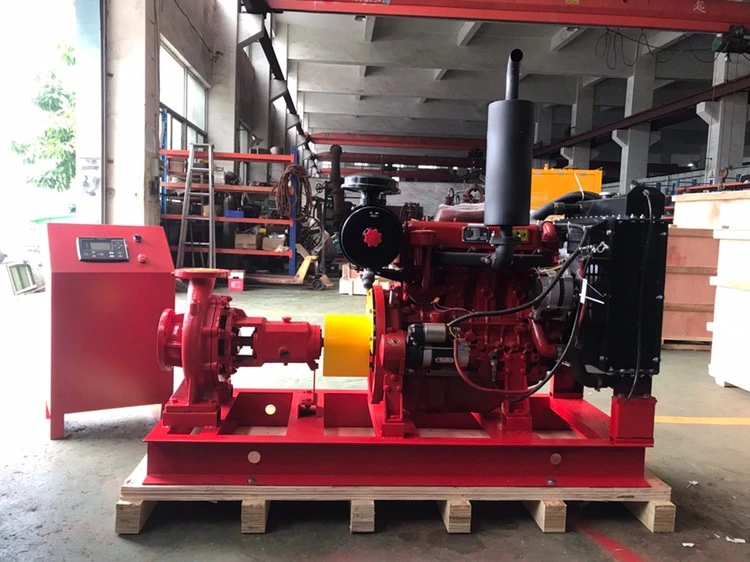

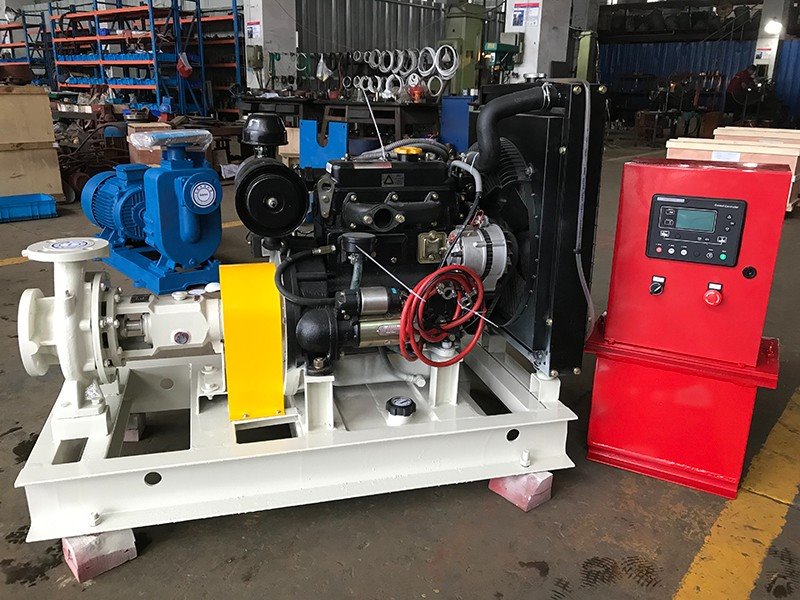

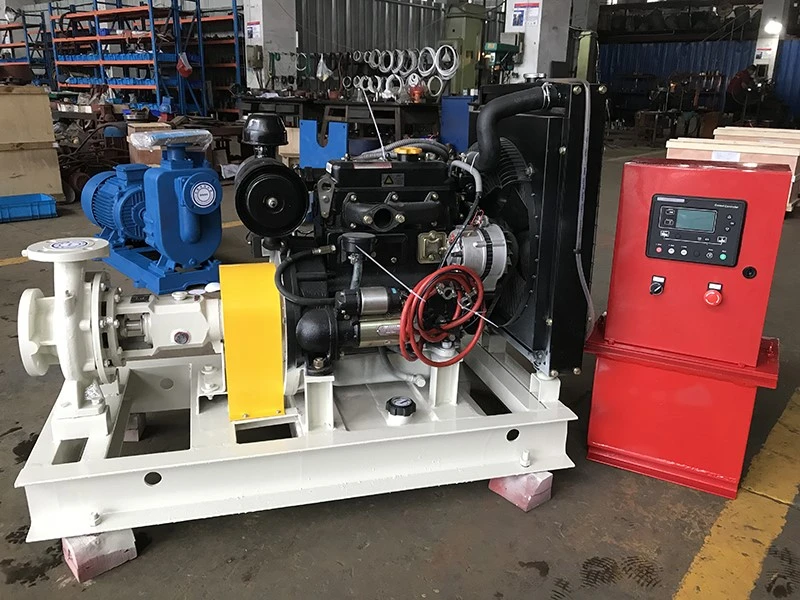

Diesel-driven Single-stage End-suction Pump
The diesel-driven single-stage end-suction pump fully complies with the ISO 2858 standard, covering both performance requirements and dimensional specifications. Shaft sealing options include packing seals and mechanical seals. Featuring an optimized hydraulic design, this series adopts performance parameters derived from KIS centrifugal pump and ISW inline pump models. It is meticulously engineered based on the conventional horizontal inline pump structure.
This series is characterized by high efficiency, energy savings, low noise, and reliable operation.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of diesel-driven single-stage end-suction pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized diesel-driven single-stage end-suction pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
6.3m3/h~400m3/h |
|
Head |
5m~125m |
|
Size |
DN32mm~200mm |
|
Diesel power |
2.2KW~132KW |
|
Diesel speed |
1450~3000r/m |
|
Diesel brand |
Cummins, Deutz, Yanmah, Weichai, Laidong etc |
|
Altitude |
≤2500m |
|
Ambient temperature |
≤50℃ |
|
Working temperature |
≤80℃ |
|
Air relative humidity |
9~95% |
Application
1. Building & Municipal Fire Protection Systems
The unit acts as either a main or standby pump for independent and combined fire water supply systems. It is widely used for fire pressure boosting in high-rise buildings, commercial complexes, airports, ports and underground structures. It automatically starts up to deliver emergency water supply during sudden power failure or electric pump malfunction.
2. Industrial & Petrochemical Facilities
It adapts to high-risk working environments including petrochemical plants, gas stations, power plants, LPG stations, textile factories and storage warehouses, delivering stable high-pressure water for fire fighting and foam suppression systems.
3. High-Pressure Water Mist Fire Suppression Systems
Matched with high-pressure plunger pumps and multistage centrifugal pumps for water pressurization and atomization. It is specially engineered for water-sensitive venues and high-risk electrical fire areas such as data centers, ancient architecture, cultural relic warehouses, subway control rooms and oil-immersed transformer rooms.
4. Mining & Metallurgy Industry
Suitable for underground coal seam water injection for dust suppression and coal softening, high-pressure water injection rock breaking in metal and non-metal mines, and serves as emergency backup power for hydraulic support emulsion pump stations. The independent diesel power guarantees uninterrupted high-pressure water injection even under power outage or gas outburst conditions.

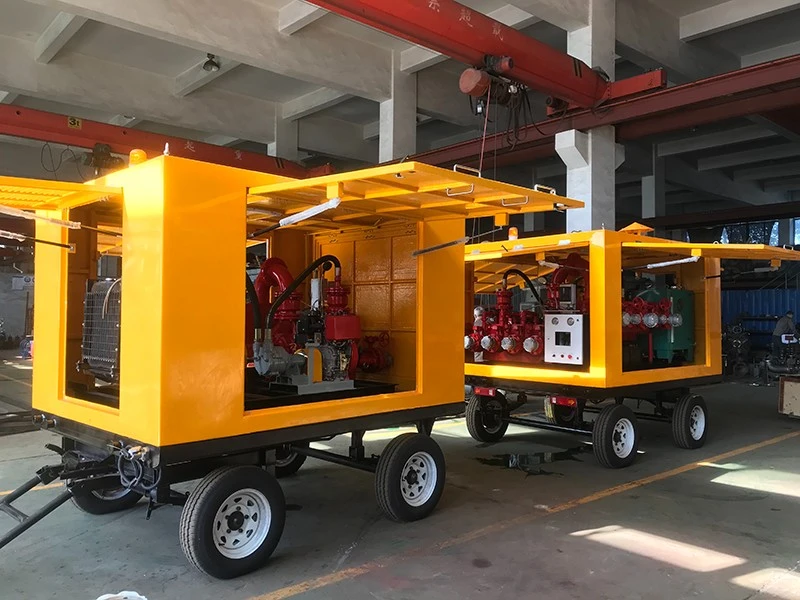

5. Off-Grid Operation & Emergency Rescue
Perfect for off-grid substations and communication base stations. It supports long-distance high-pressure water transportation from low-altitude water sources to mountain wildfire zones. When municipal pipe networks collapse due to earthquakes or floods, the pump can draw surface water to provide secondary emergency water supply for high-rise buildings.
6. Municipal & Agricultural Special Scenarios
Applicable for high-pressure sewer cleaning and municipal pipeline maintenance, including tree root cutting and concrete block removal. It also supports precision agricultural spraying for orchards and farmland, and provides pressure boosting for drip irrigation and micro-sprinkler systems in complex terrains and steep slope areas.
