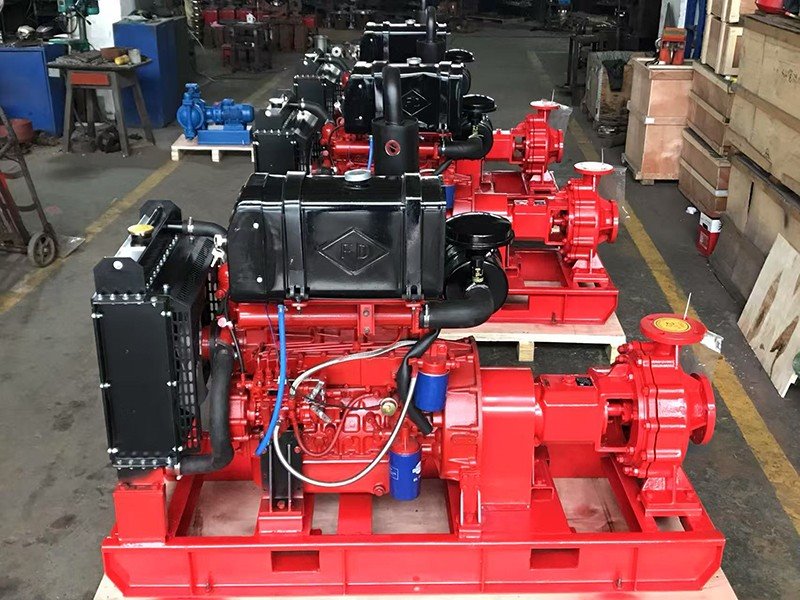

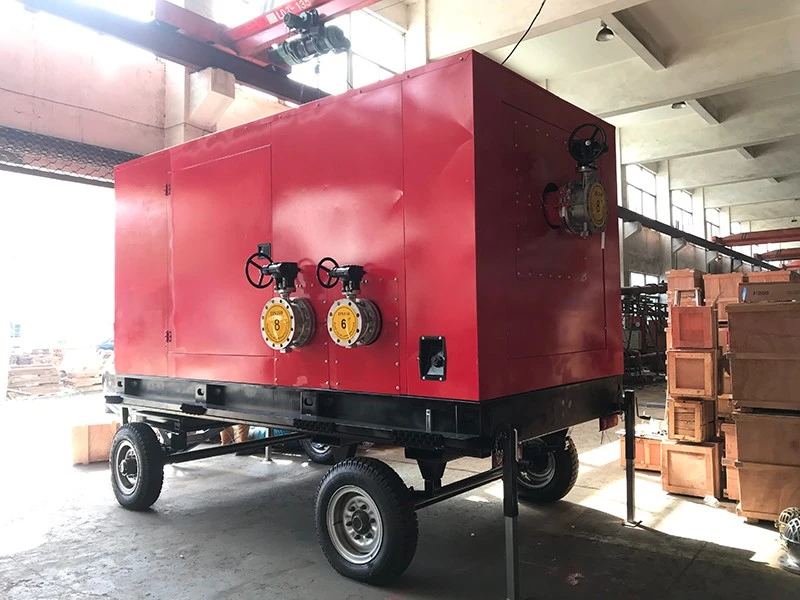

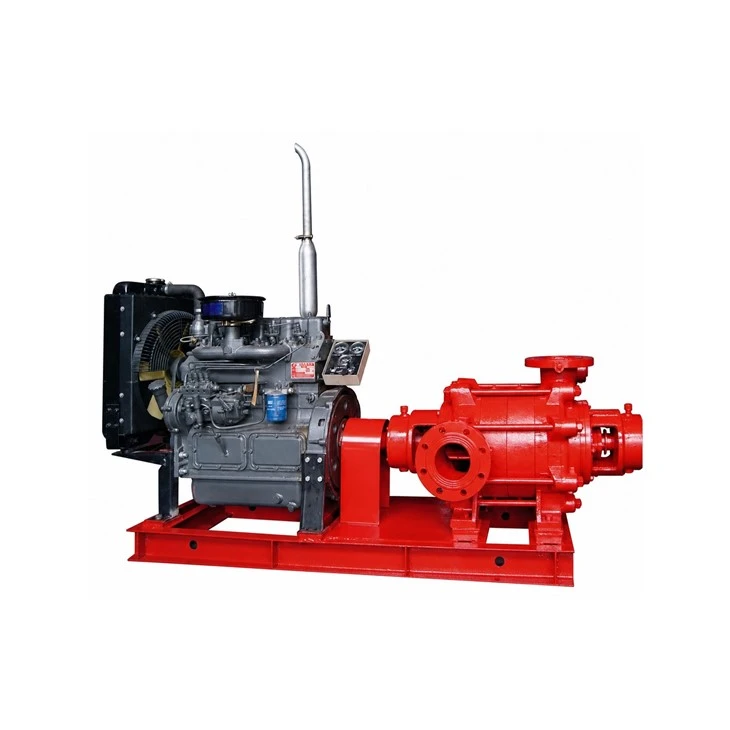

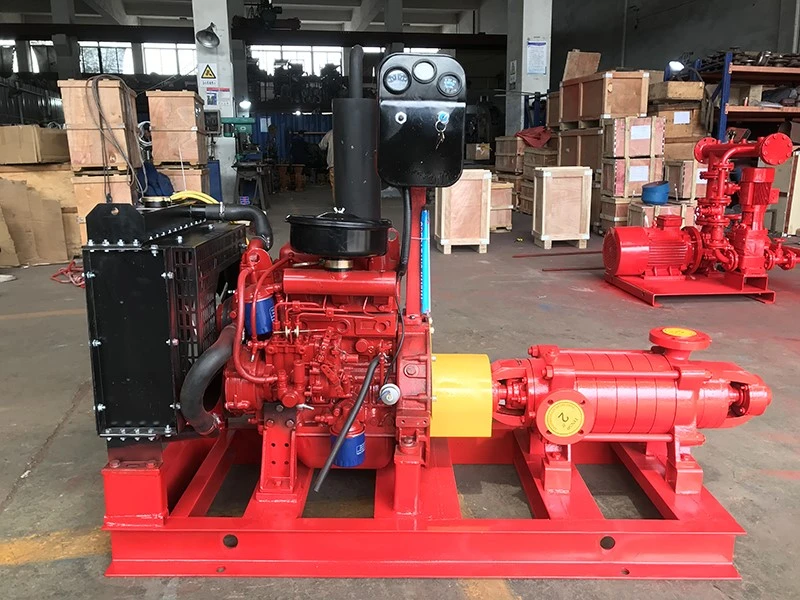

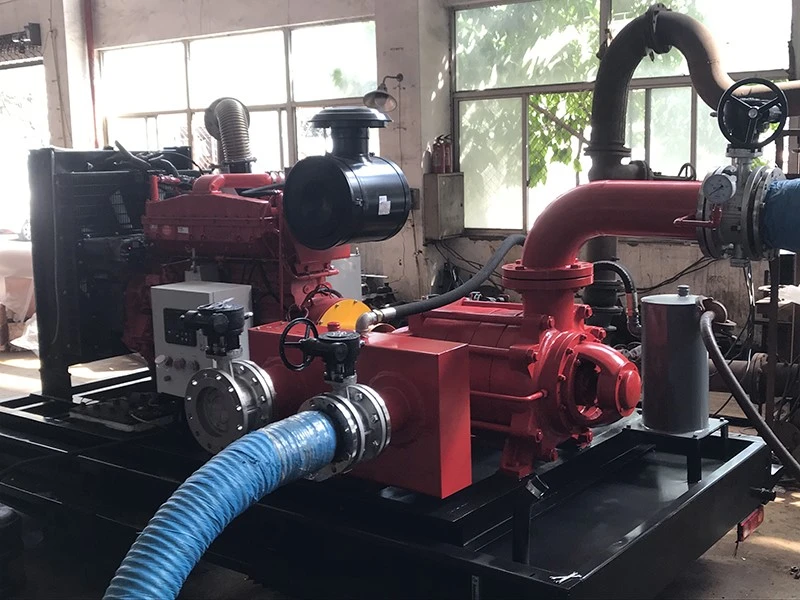

XBC-D Type Diesel-driven Multistage Pump
The diesel-driven multistage pump adopts segmented multistage construction. It features horizontal suction and vertical upward discharge. Its head can be adjusted by changing the number of pump stages according to working requirements.
The pump delivers stable operation, low noise, high efficiency and a wide performance range. Shaft seal can be configured with packing seal or mechanical seal; both types are safe, reliable, simple in structure and allow quick and convenient maintenance.The fully isolated shaft structure prevents direct contact between the shaft and conveyed medium, avoiding corrosion and prolonging service life.
For pumps of the same model, different wetted materials, sealing arrangements and optional cooling systems can be adopted to adapt to various transported media.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of xbc-d type diesel-driven multistage pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized xbc-d type diesel-driven multistage pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Capacity |
6m3/h~740m3/h |
|
Head |
40m~690m |
|
Size |
DN40mm~300mm |
|
Diesel power |
5.5KW~1600KW |
|
Diesel speed |
1450~3000r/m |
|
Diesel brand |
Cummins, Deutz, Yanmah, Weichai, Laidong etc |
|
Altitude |
≤2500m |
|
Ambient temperature |
-25~55℃ |
|
Air relative humidity |
9~95% |
Application:
This pump is widely used for pumping clean water or liquids with physical properties similar to water. They are widely used in industrial plants, mines, municipal water supplies, HVAC cooling systems, firefighting systems, and agricultural irrigation.
Model-Specific Applications
D Type: Suitable for clean water with a temperature below 80℃. Widely applied in municipal water supplies, HVAC systems, firefighting systems, and irrigation.
DG Type: Suitable for hot water with a temperature below 130℃. Widely applied in hot water supply systems and boiler feedwater applications.
DY Type: Suitable for oil transfer free from large solid particles. Temperature range: -20℃ to 105℃; Viscosity: ≤ 120 cP (centipoise).
DF Type: Suitable for corrosive liquids free from solid particles. Temperature range: -20℃ to 105℃.
MD Type: Suitable for neutral mine water and sewage containing solid particles (concentration ≤ 1.5%, particle size ≤ 1.5mm). Temperature range: -20℃ to 105℃.
