Horizontal Inline Pump

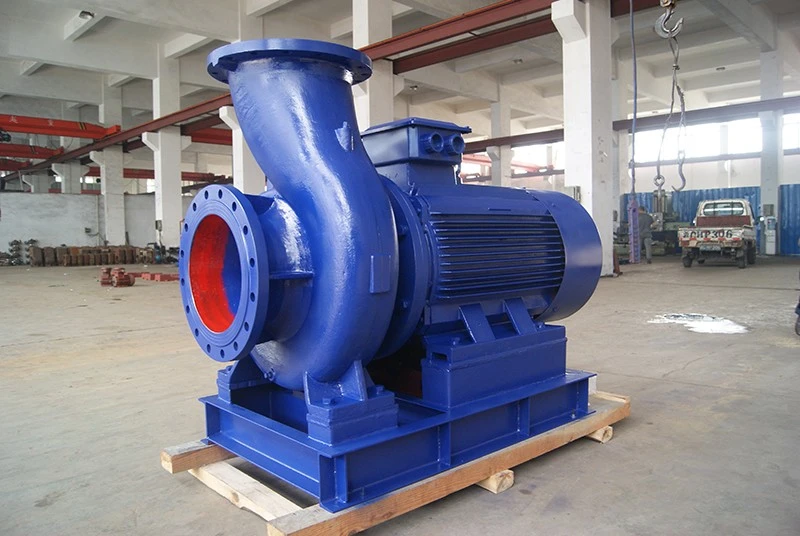

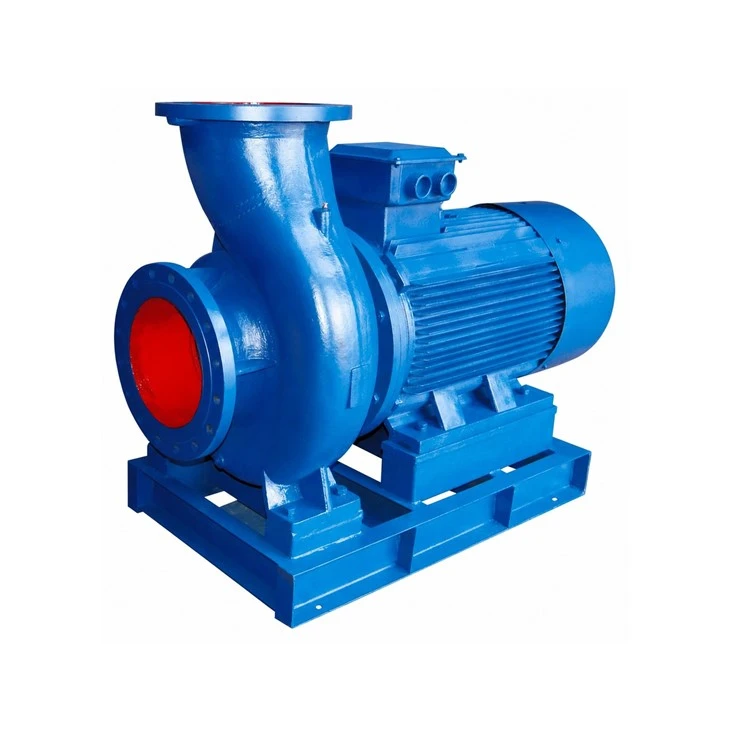

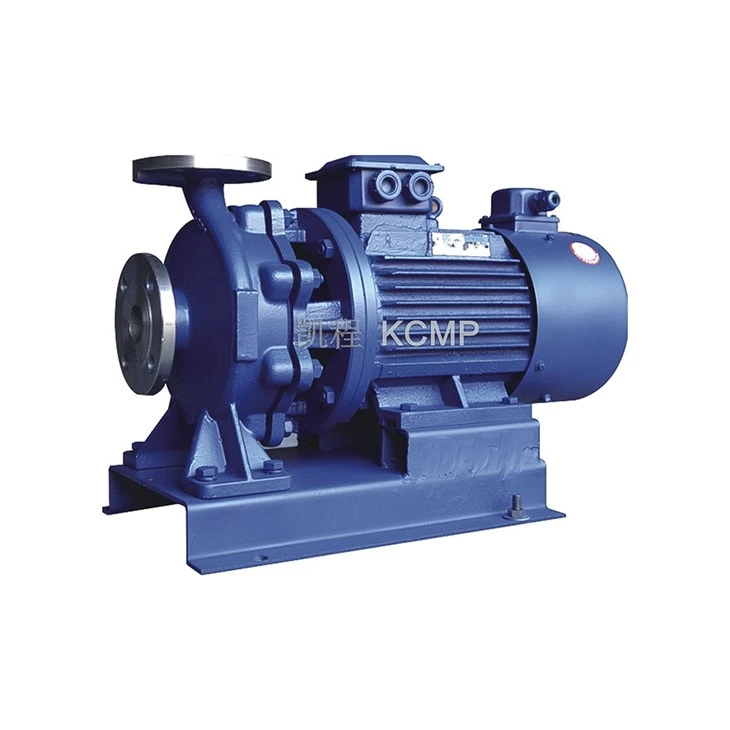

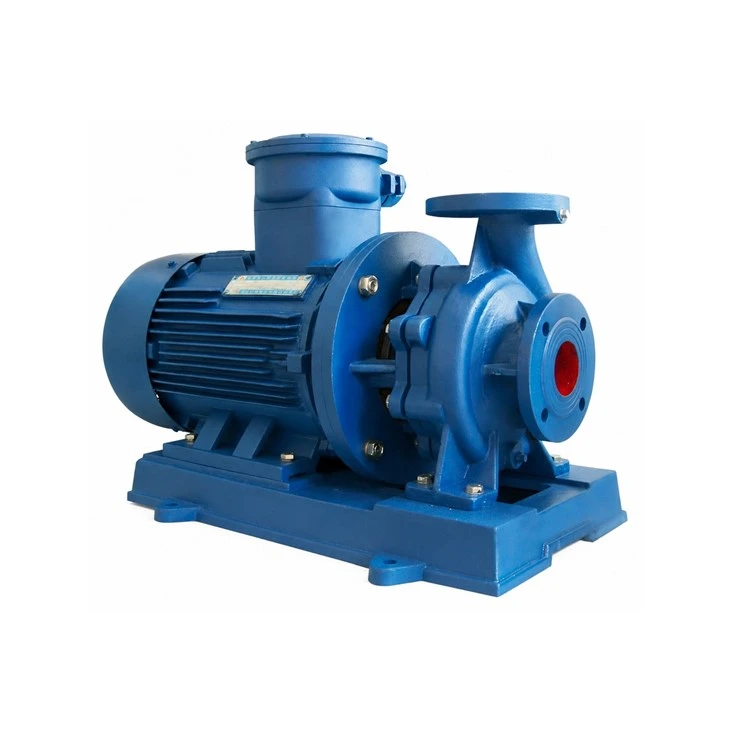

The KCW horizontal pump is designed with a floor-mounted horizontal base. Inlet and outlet flanges are coaxially aligned on one horizontal plane for straightforward inline piping assembly.The direct-coupled coaxial structure eliminates extra coupling accessories, making the unit compact and its operation stable. Outperforming standard IS horizontal pumps, it generates less operating noise and requires minimal maintenance work.We supply multiple customizable configurations including stainless steel corrosion-resistant, high-temperature, VFD-driven, and explosion-proof types, which are widely deployed for water pressurization and circulating system applications.
- Product Introduction
Zhejiang Kaicheng Pump Valve Co., Ltd. is one of the leading manufacturers and suppliers of horizontal inline pump in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy customized horizontal inline pump at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Technical Parameters
|
Flow |
2~1200m3/h |
|
Head |
5~150m |
|
Speed |
1450rpm and 2900rpm (50HZ) 1750rpm and 3500rpm (60HZ) |
|
Inlet/Outlet Diameter |
DN25mm~DN300mm |
|
Medium Temperature |
-15℃~105℃ |
|
Working Pressure |
≤1.6MPa |
Applicable Media
Chilled circulating water for central air conditioning, HVAC hot water, building booster tap water, industrial cooling water, boiler makeup water, municipal pipeline water, clean process circulating liquids, and neutral or mildly corrosive fluids.
Main Applications
HVAC systems for commercial buildings, residential district secondary water supply, factory cooling circulation systems, office and shopping mall air conditioning support, municipal water booster stations, metallurgical equipment cooling, aquaculture water supply, closed-loop water circulation for fixed equipment, and heat exchanger unit matching projects.
